Sealant Application Areas

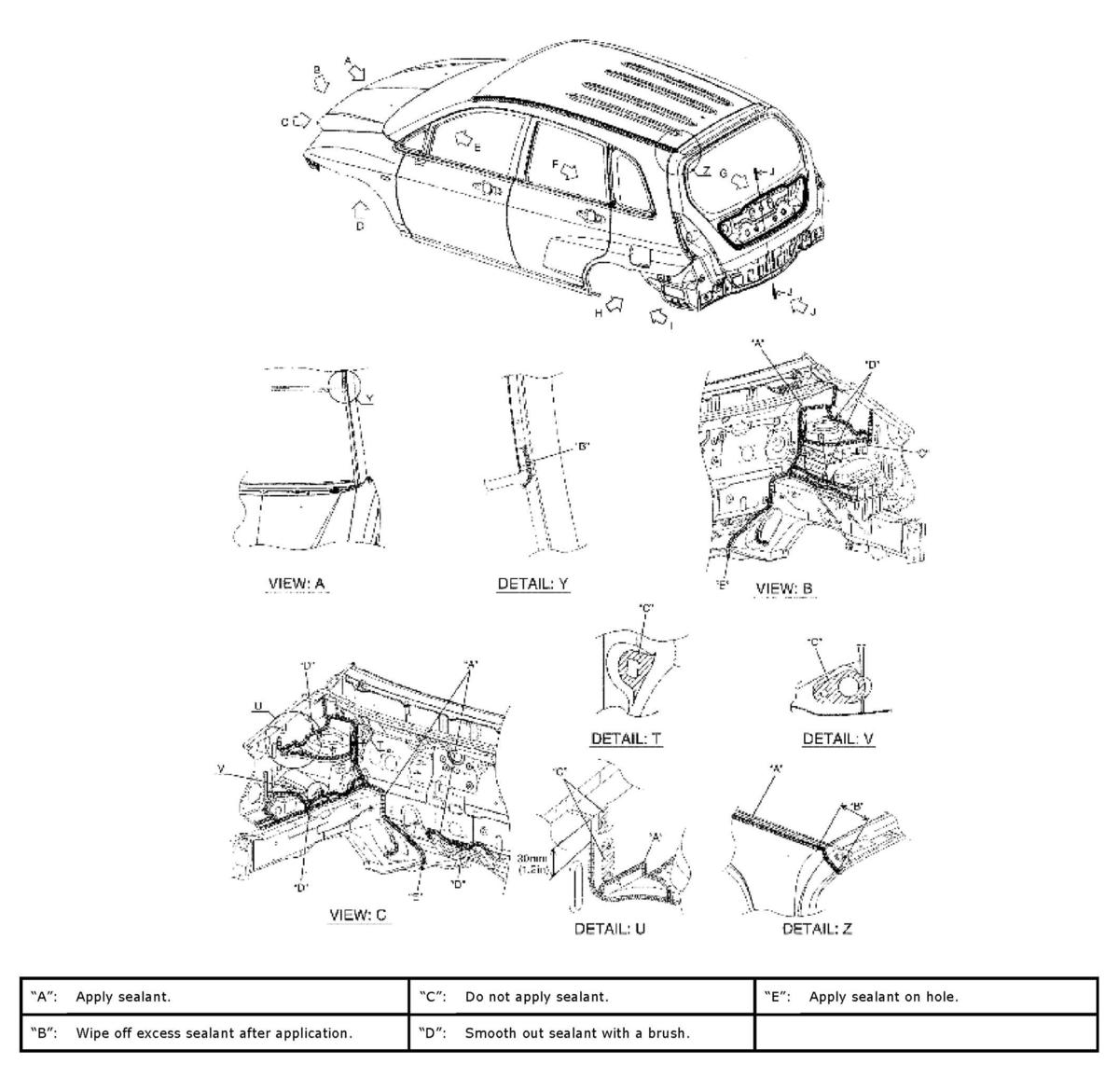

Fig 1: Identifying Sealant Application Areas (1 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: For "DETAIL", "VIEW" and "SECT" which are not shown in this figure refer to the following figure.

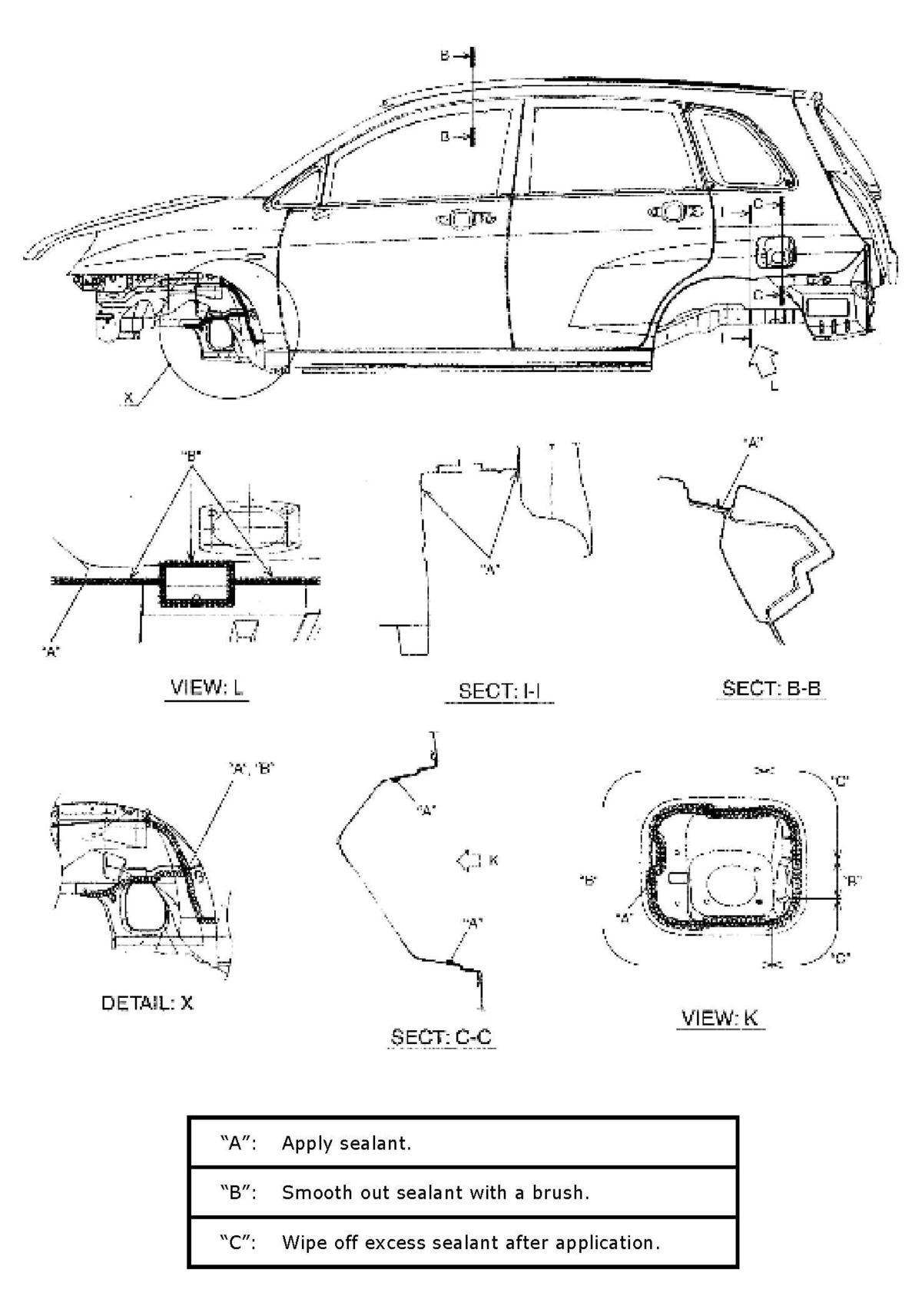

Fig 2: Identifying Sealant Application Areas (2 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

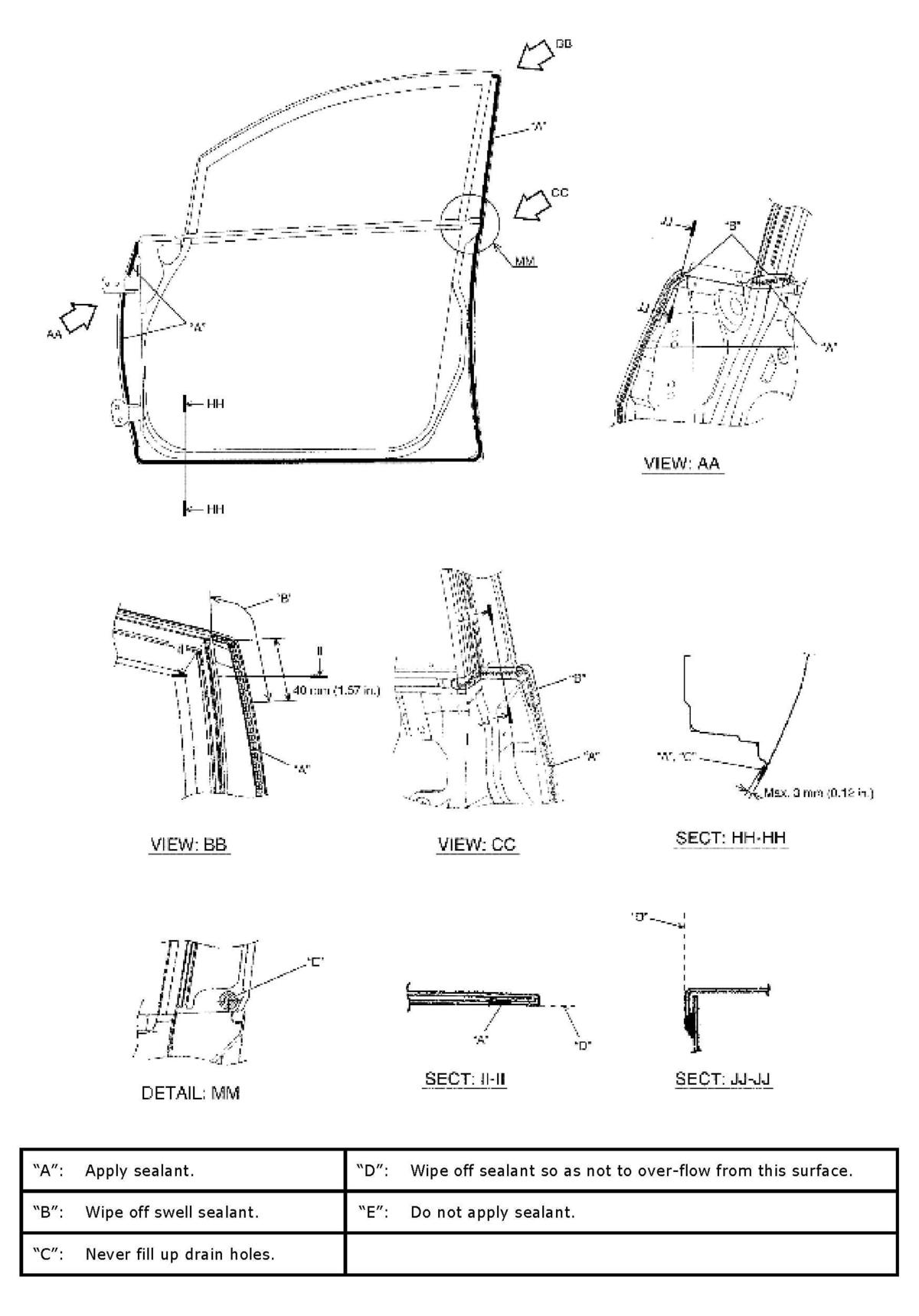

Fig 3: Identifying Sealant Application Areas (3 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

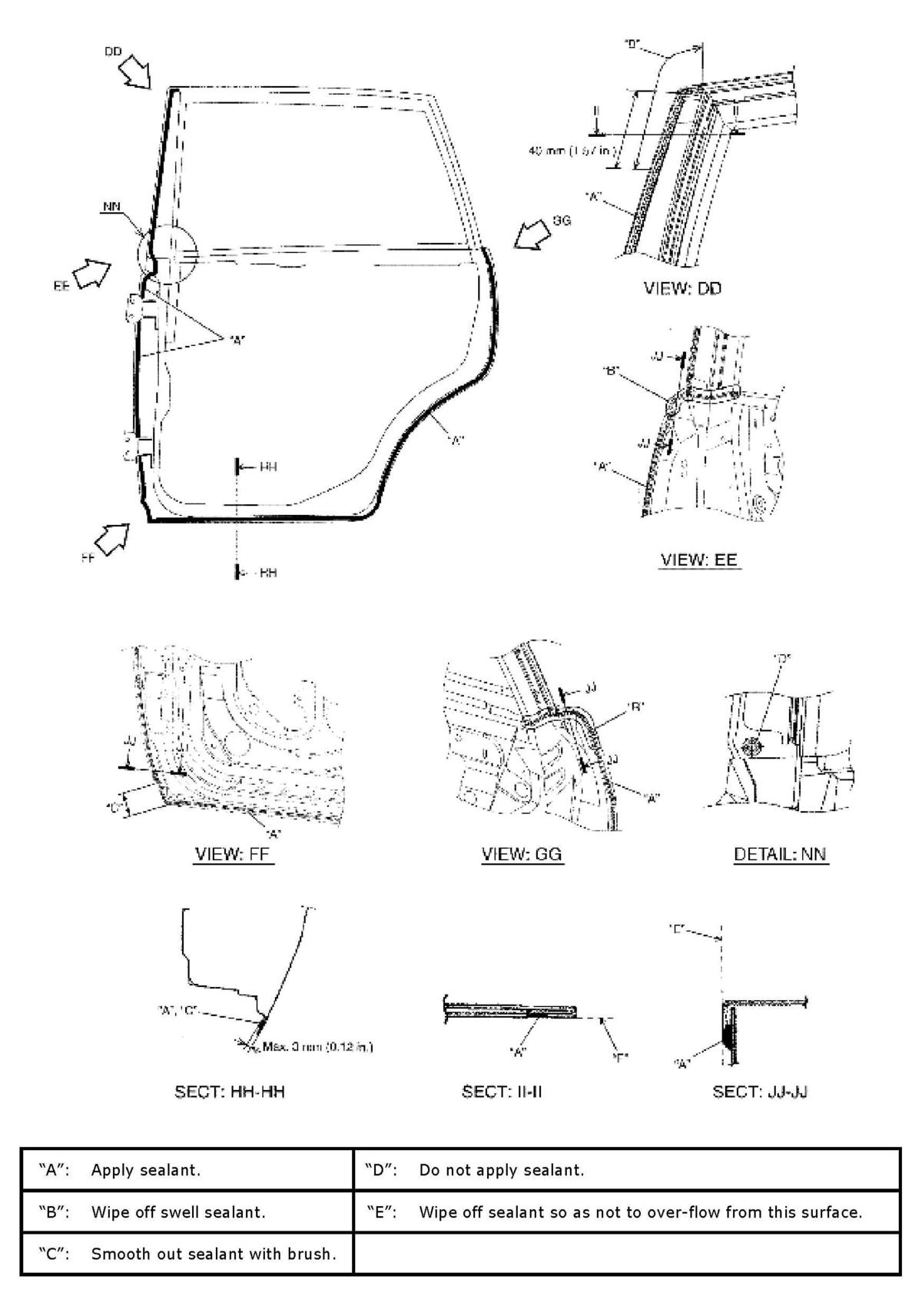

Fig 4: Identifying Sealant Application Areas (4 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

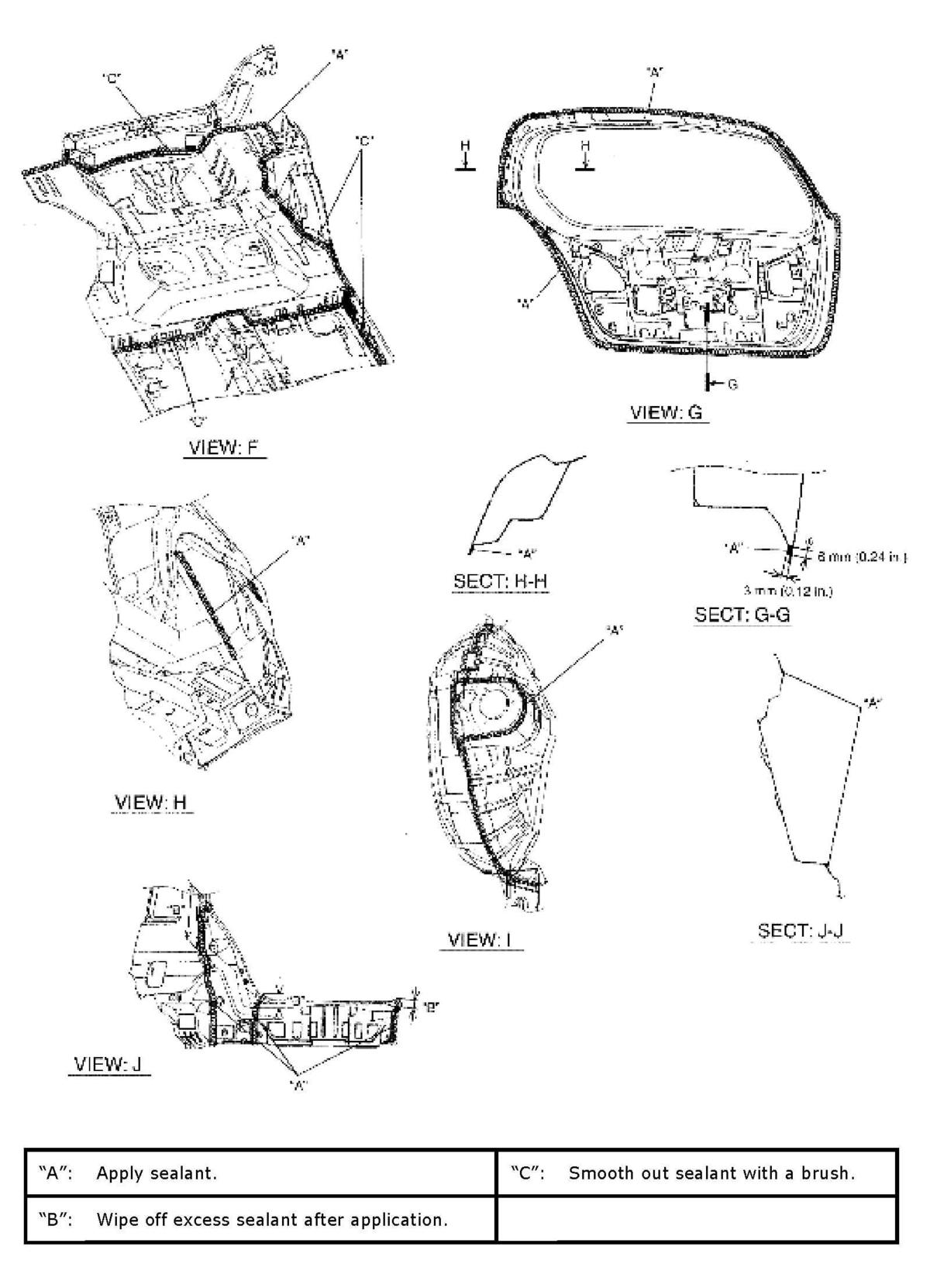

Fig 5: Identifying Sealant Application Areas (5 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.

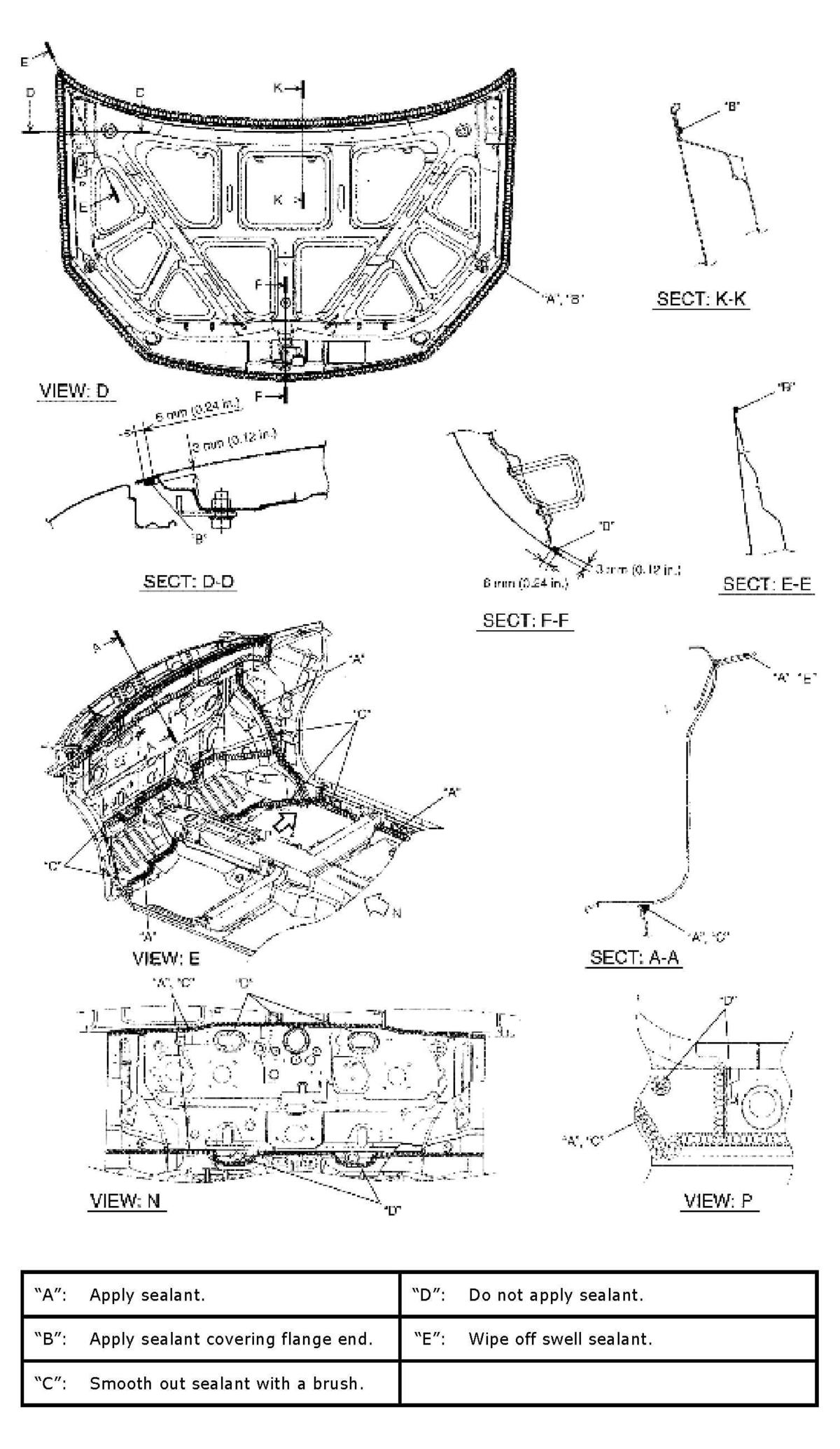

Fig 6: Identifying Sealant Application Areas (6 Of 6)

Courtesy of SUZUKI OF AMERICA CORP.
