Sealant Application Areas

NOTE: For the items not found in Sedan model, refer to SEALANT APPLICATION AREAS: WAGON .

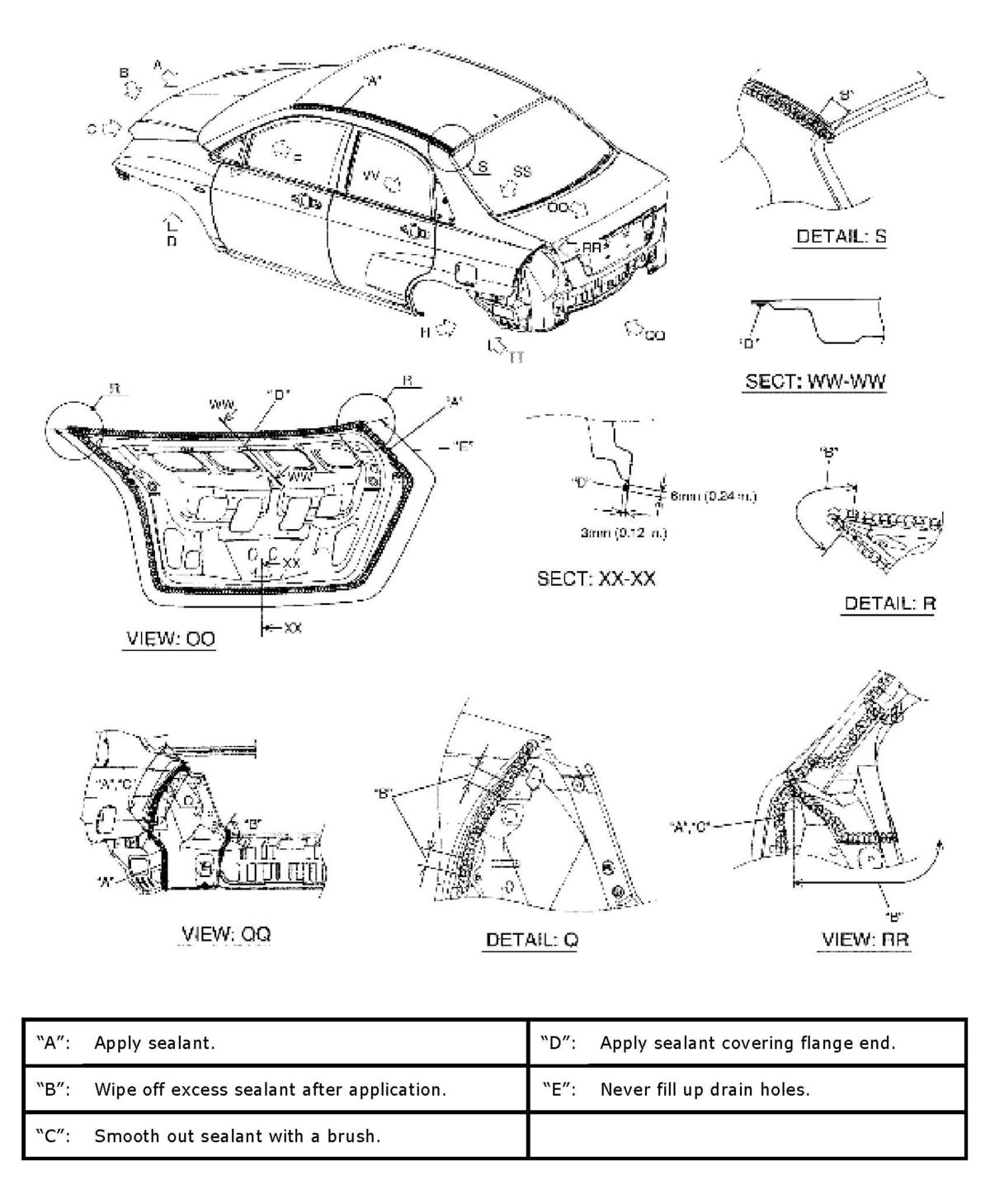

Fig 1: Identifying Sealant Application Areas (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: VIEW SS, TT, VV: Refer to the next figure .

VIEW A, B, C, D, E, H: Refer to SEALANT APPLICATION AREAS: WAGON .

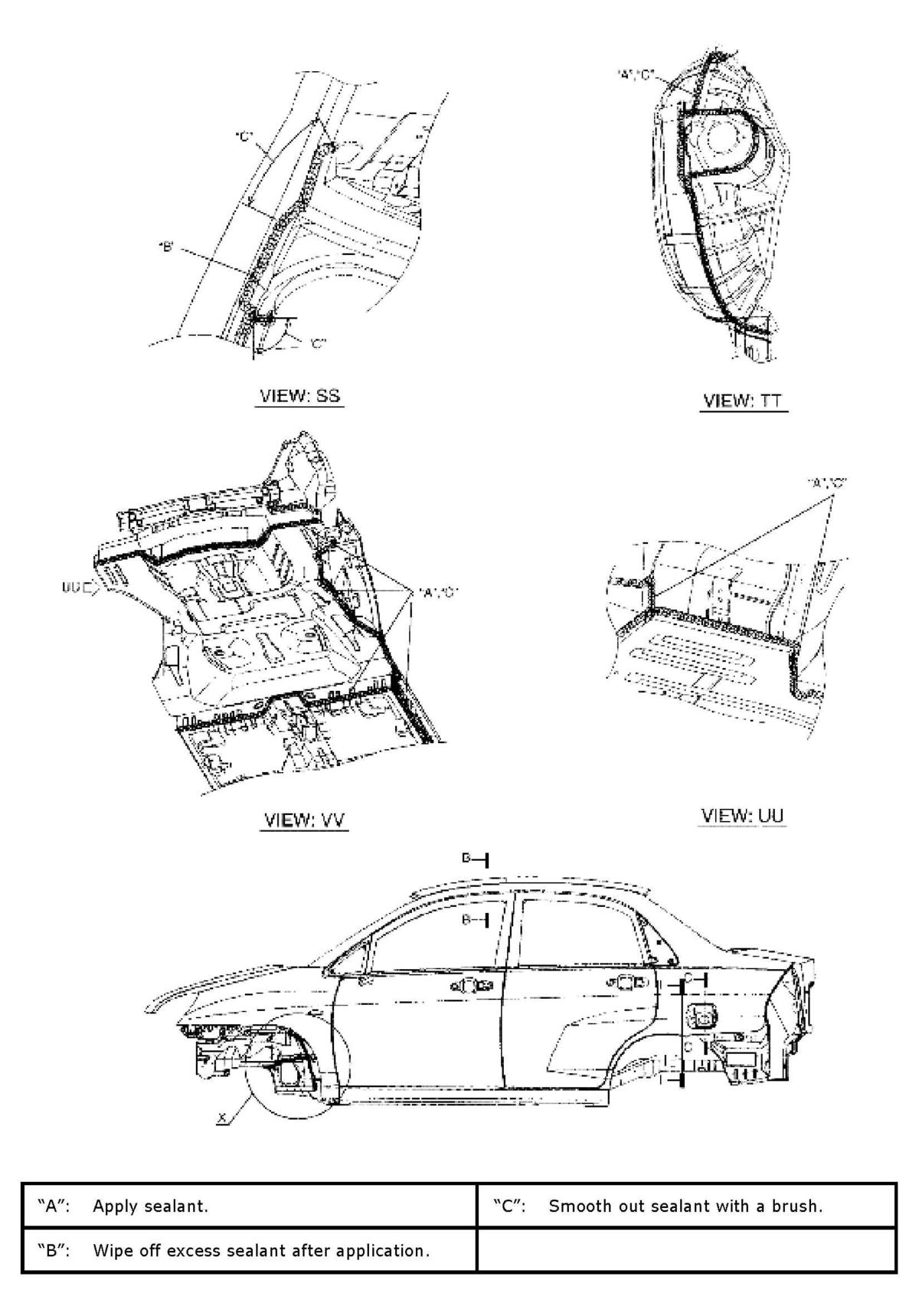

Fig 2: Identifying Sealant Application Areas (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

NOTE: SECT B-B, C-C, I-I, DETAIL X: Refer to SEALANT APPLICATION AREAS: WAGON .
