Roof Molding Components

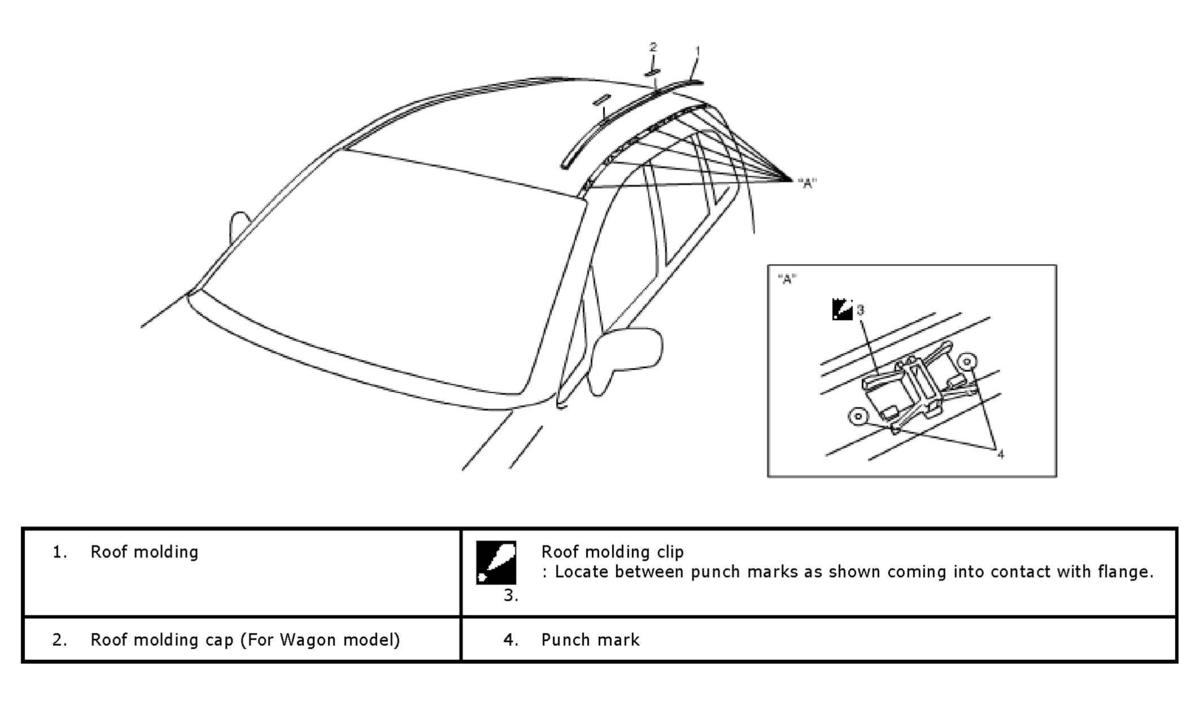

Fig 1: Identifying Roof Molding Components
G04591767Courtesy of SUZUKI OF AMERICA CORP.
NOTE: For Sedan model, there are 6 place roof molding clips and not equipped with roof molding cap.
