Rear Door Assembly Components

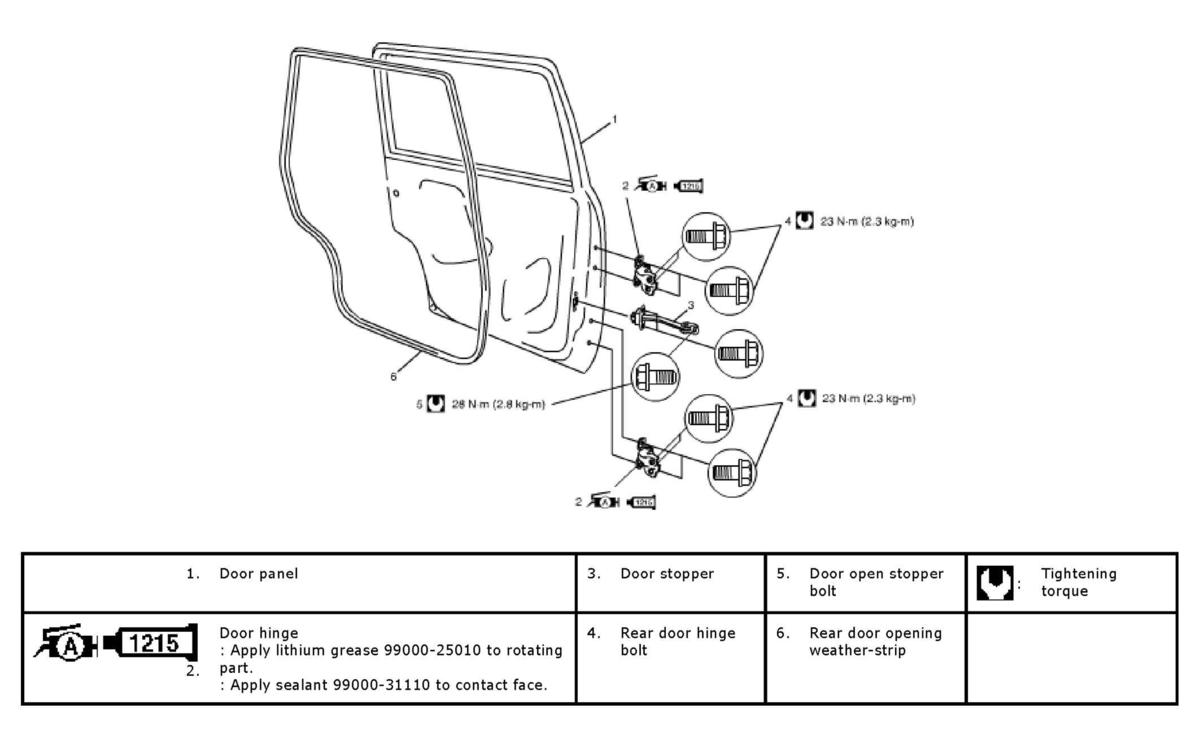

Fig 1: Identifying Rear Door Assembly Components (With Tightening Torques)
G04591731Courtesy of SUZUKI OF AMERICA CORP.
