Windshield Wiper and Washer Switch Removal and Installation: Removal

  1. Disconnect negative (-) cable at battery.
  2. Remove steering column hole cover (1).
  3. Remove steering column covers (2).

    Turn steering wheel to access steering column cover rear end screws.

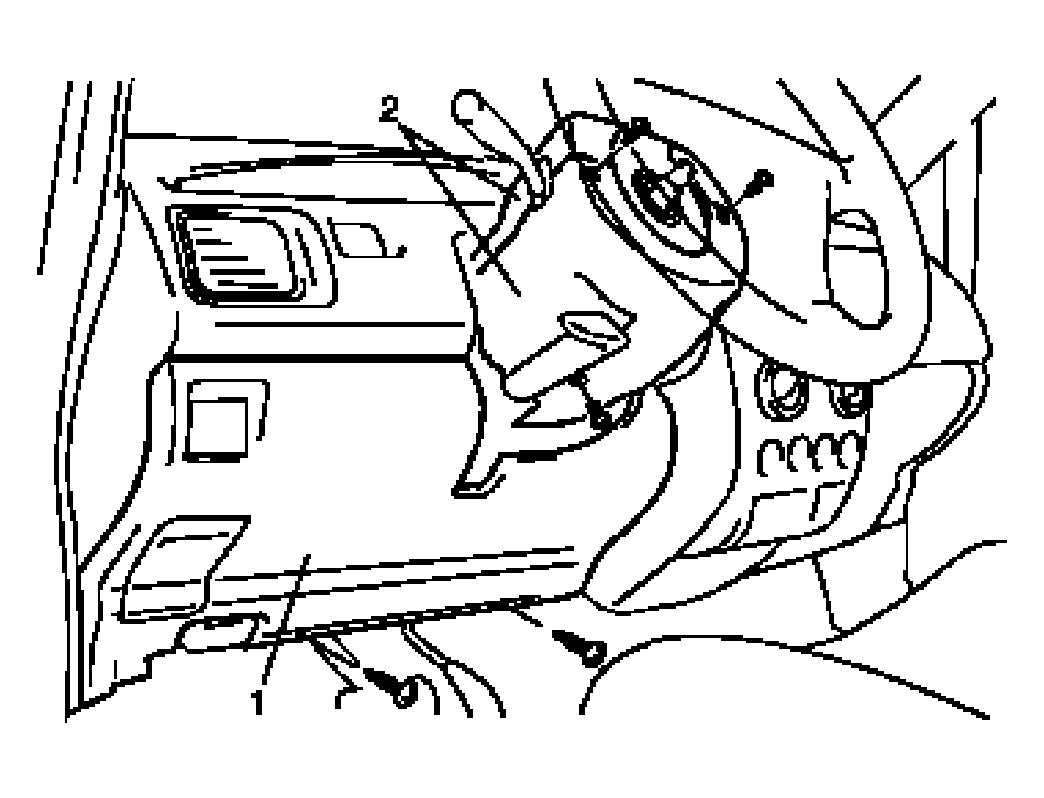

    Fig 1: Removing Windshield Wiper And Washer Switch
    G04591618Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove windshield wiper and washer switch (1) from combination switch assembly (2) and disconnect its coupler (3).
    Fig 2: Removing Windshield Wiper And Washer Switch
    G04591619Courtesy of SUZUKI OF AMERICA CORP.
