Rear Wiper and Washer Switch Inspection

Check for continuity between terminals at each switch position. If check result is not as specified, replace switch.

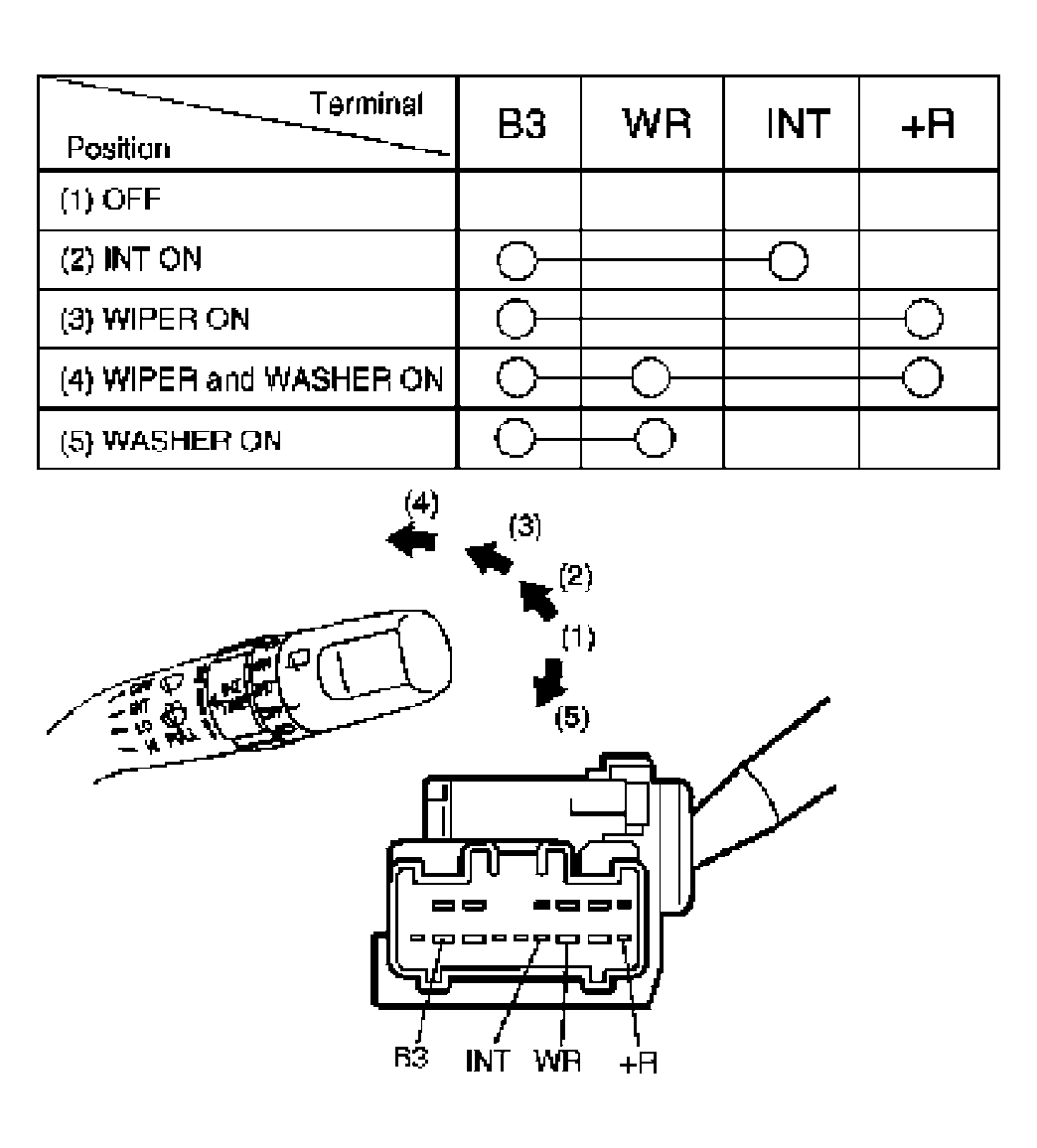

Fig 1: Inspecting Rear Wiper And Washer Switch

Courtesy of SUZUKI OF AMERICA CORP.
