Automatic Stop Operation

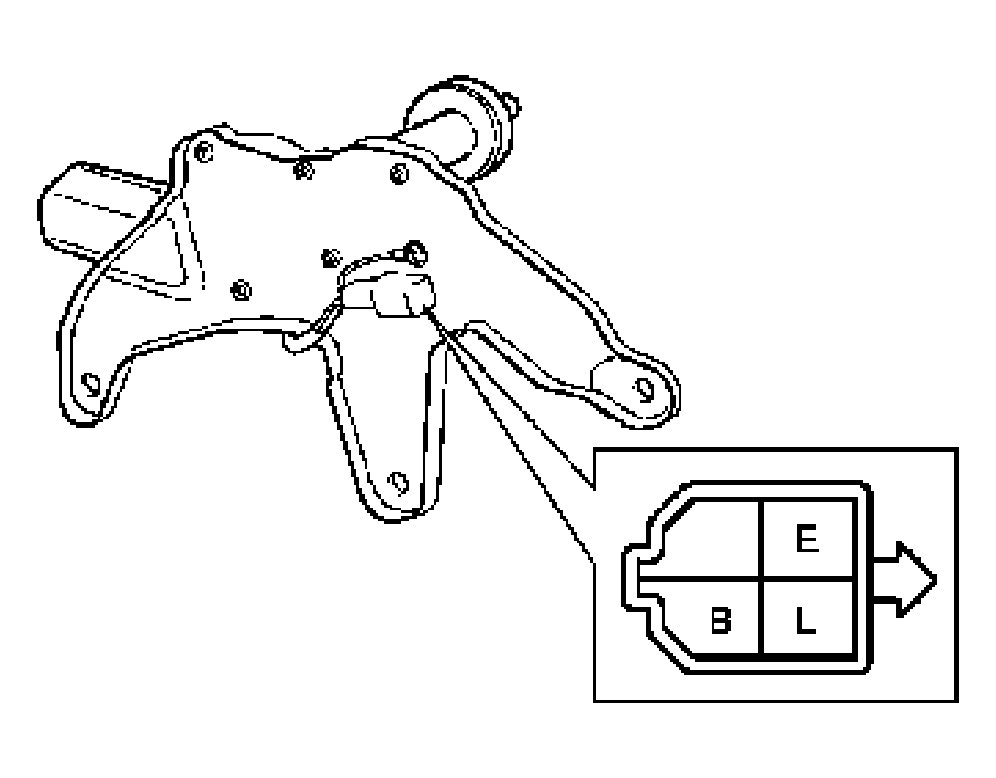

- Connect battery positive (+) terminal to terminal "L" and its negative (-) terminal to terminal "E" and let the motor turn.
- Disconnect terminal "L" from battery positive (+) terminal and let the motor stop.
- Connect terminal "B" to battery positive (+) terminal. Observe the motor turns once again then stops at a specified position.
- Repeat Step 1) to 3) several times and check that the motor stops at the specified position every time. If check result is not satisfied, replace motor.
Courtesy of SUZUKI OF AMERICA CORP.
