Rear Wiper Intermittent Relay Removal and Installation: Removal

Disconnect negative (-) cable from battery.

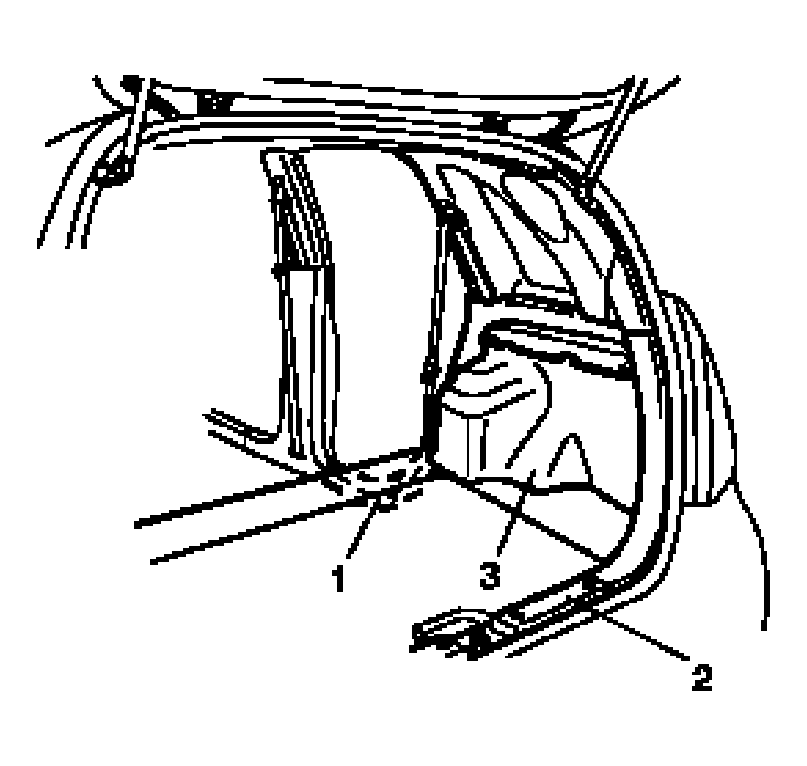

Remove rear side still scuff (1), rear luggage end garnish (2) and quarter inner trim (3).

Fig 1: Removing Rear Side Still Scuff Rear Luggage End Garnish
Courtesy of SUZUKI OF AMERICA CORP.

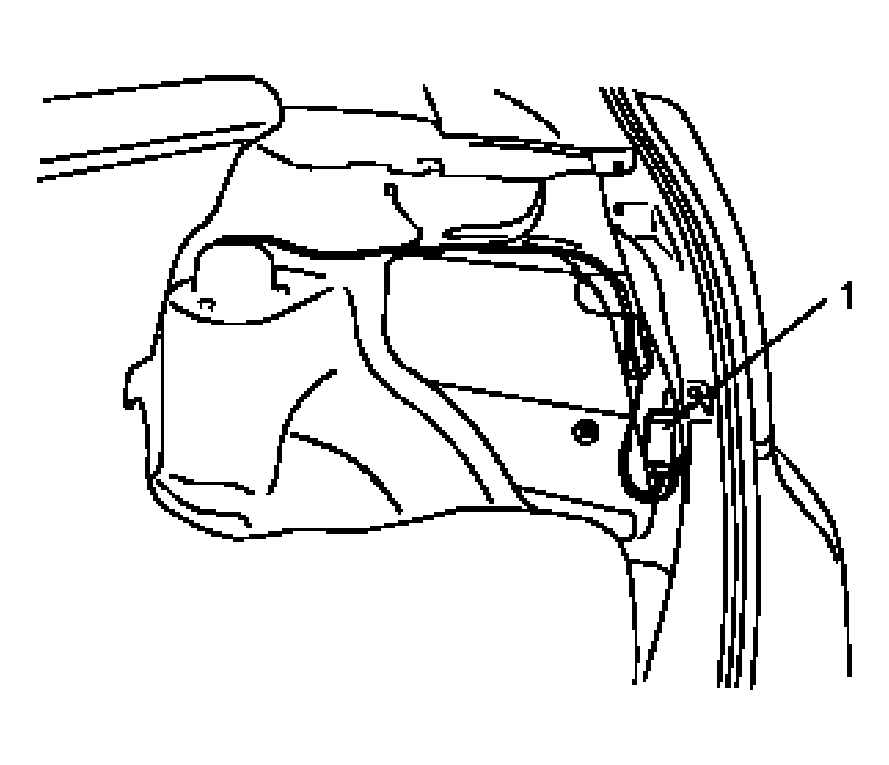

Remove rear wiper intermittent relay (1) from vehicle.

Fig 2: Removing Rear Wiper Intermittent Relay From Vehicle
Courtesy of SUZUKI OF AMERICA CORP.
