Headlight Diode Removal and Installation: Removal

  1. Disconnect negative (-) cable at battery.
  2. Remove glove box from instrument panel.
  3. Remove headlight diode (1) from main harness (2) as shown in figure.

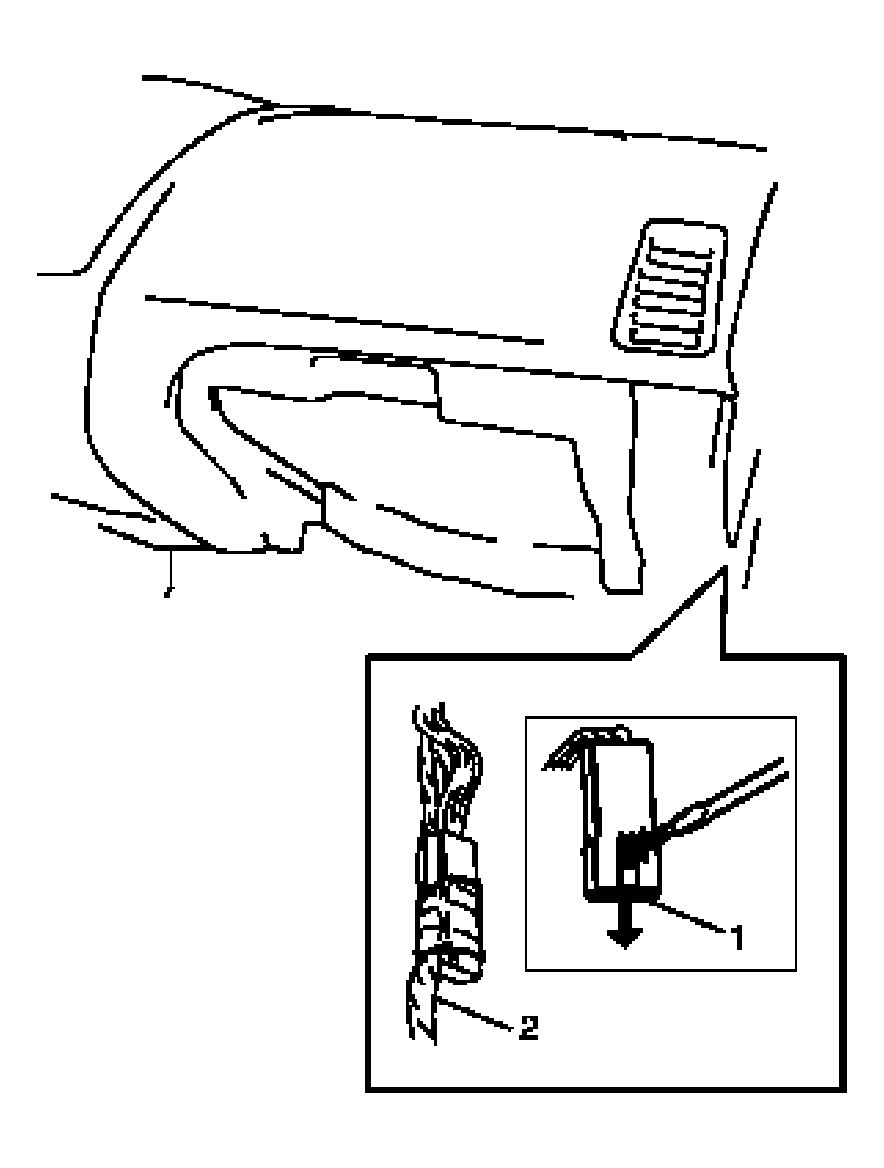

    Fig 1: Identifying Headlight Diode (1) From Main Harness (2) Removal Procedure
    G04591560Courtesy of SUZUKI OF AMERICA CORP.
