Clutch Pedal Position (CPP) Switch for Cruise Control Removal and Installation: Removal

  1. Disconnect CPP switch (1) connector with ignition switch OFF.
  2. Remove CPP switch (1) from pedal bracket (2).

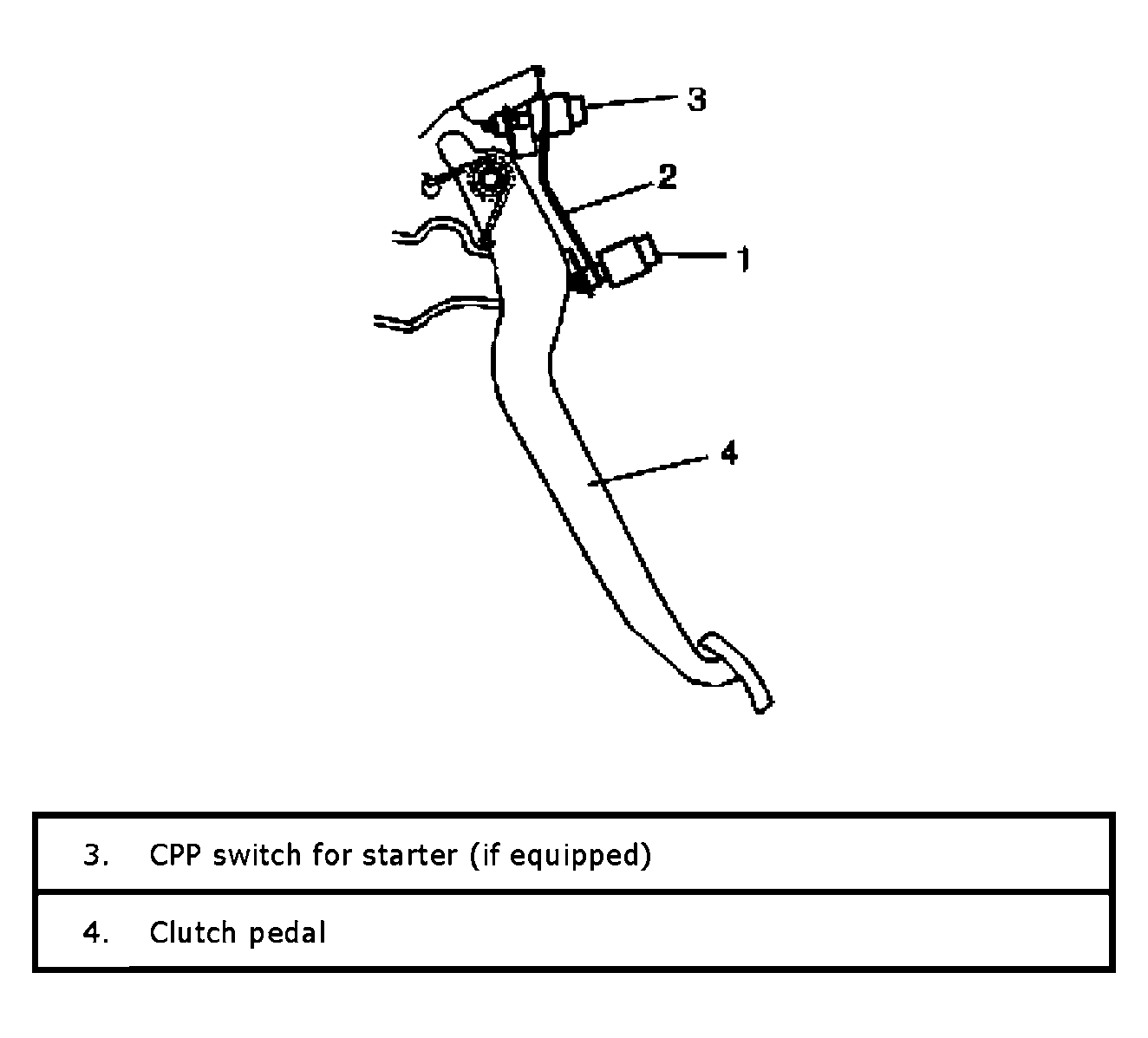

    Fig 1: Disconnecting CPP Switch Connector With Ignition Switch Off
    G04591791Courtesy of SUZUKI OF AMERICA CORP.
