Clutch Pedal Position (CPP) Switch for Cruise Control Removal and Installation: Installation

Reference: CLUTCH PEDAL POSITION (CPP) SWITCH FOR CRUISE CONTROL INSPECTION

1. Install CPP switch (1) to pedal bracket (2).
2. Pull up clutch pedal (3).
3. Adjust switch position so that clearance between end of thread and clutch pedal bracket is within specification.

   Clearance "a" between end of thread and clutch pedal bracket

   1.5 - 2.0 mm (0.06 - 0.08 in)

4. Tighten lock nut to specified torque.

   Tightening torque

   CPP switch lock nut a: 7.5 N.m (0.75 kg-m, 5.5 lb-ft)

5. Connect connector to CPP switch (1) securely.

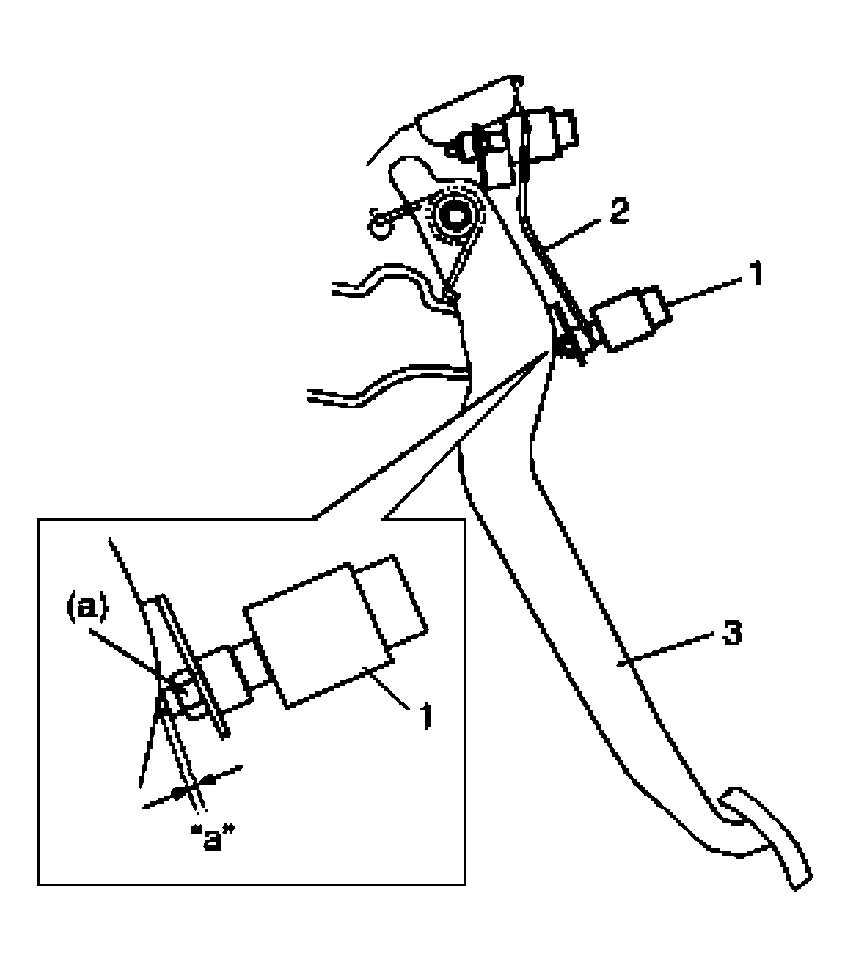

   Fig 1: Connecting Connector To CPP Switch
