Warning, Caution and Information Labels Location

The figure shows main labels among others that are attached to vehicle component parts.

When servicing and handling parts, refer to WARNING/CAUTION instructions printed on labels.

If any WARNING/CAUTION label is found stained or damaged, clean or replace it as necessary.

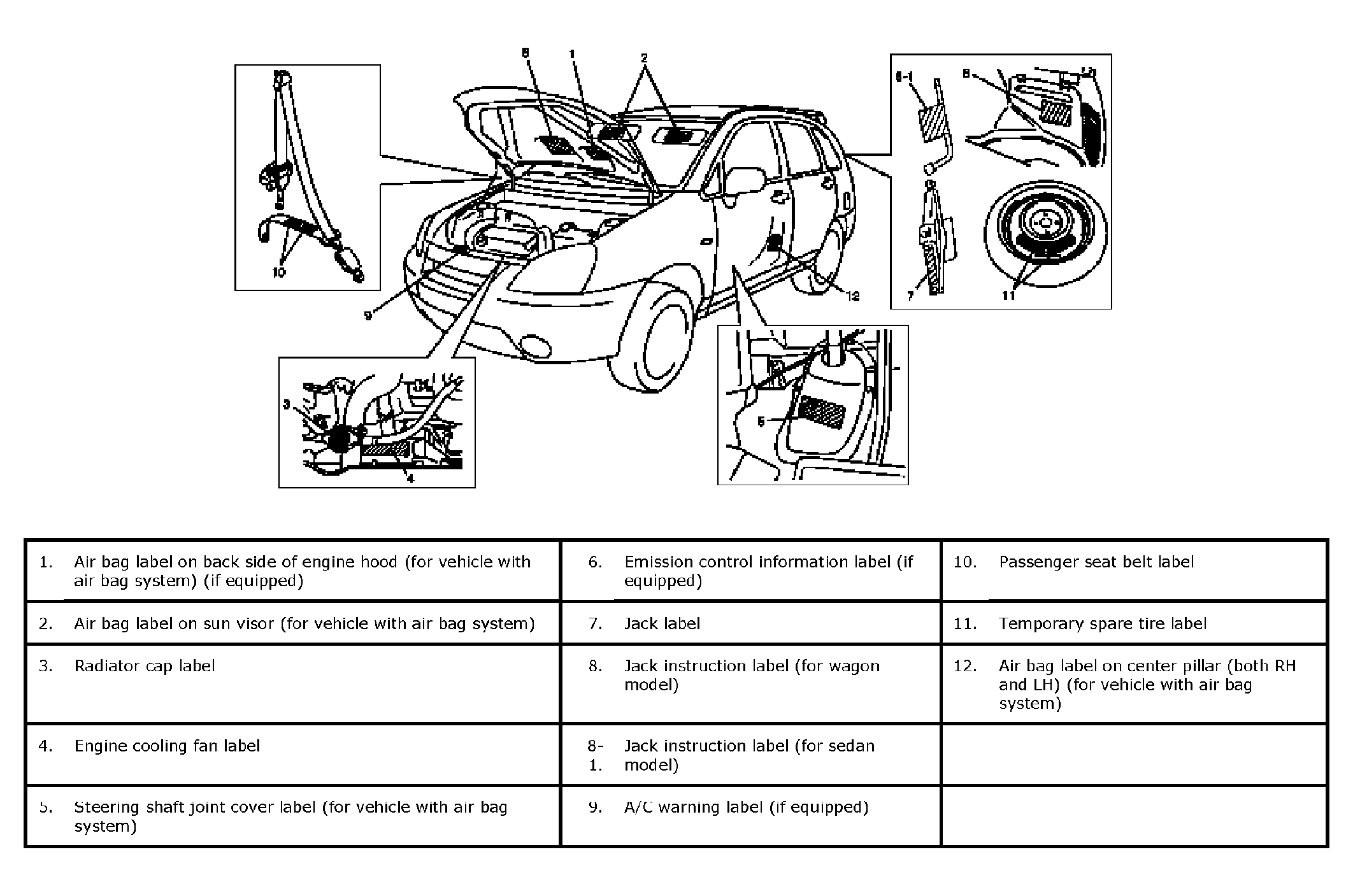

Fig 1: Identifying Warning, Caution And Information Labels Location

Courtesy of SUZUKI OF AMERICA CORP.

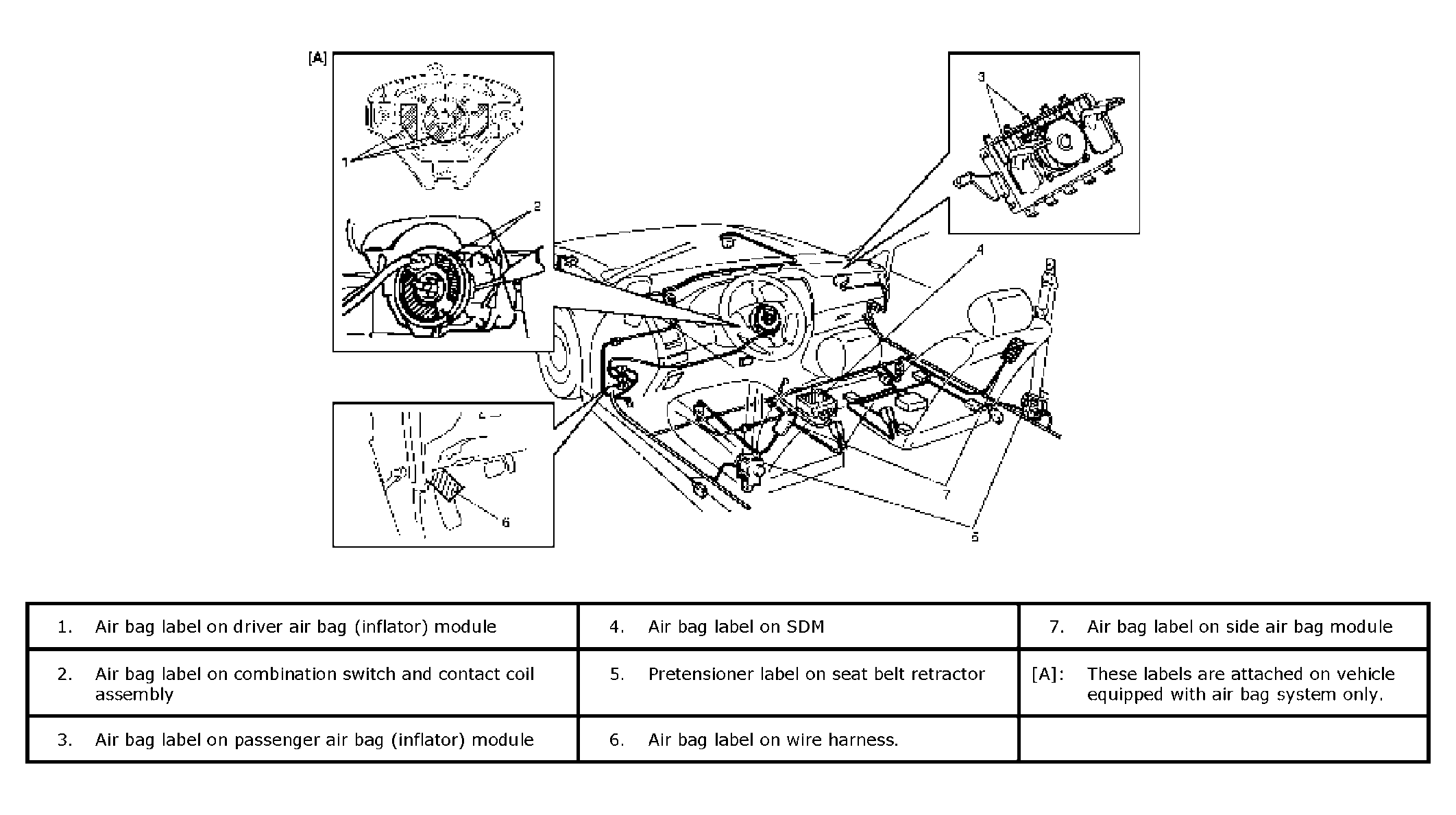

Fig 2: Identifying Air Bag Module Component Location

Courtesy of SUZUKI OF AMERICA CORP.
