Engine Cover Removal and Installation: Removal

  1. Remove engine cover bolts (1).
  2. Remove engine cover (2) from cylinder head cover.

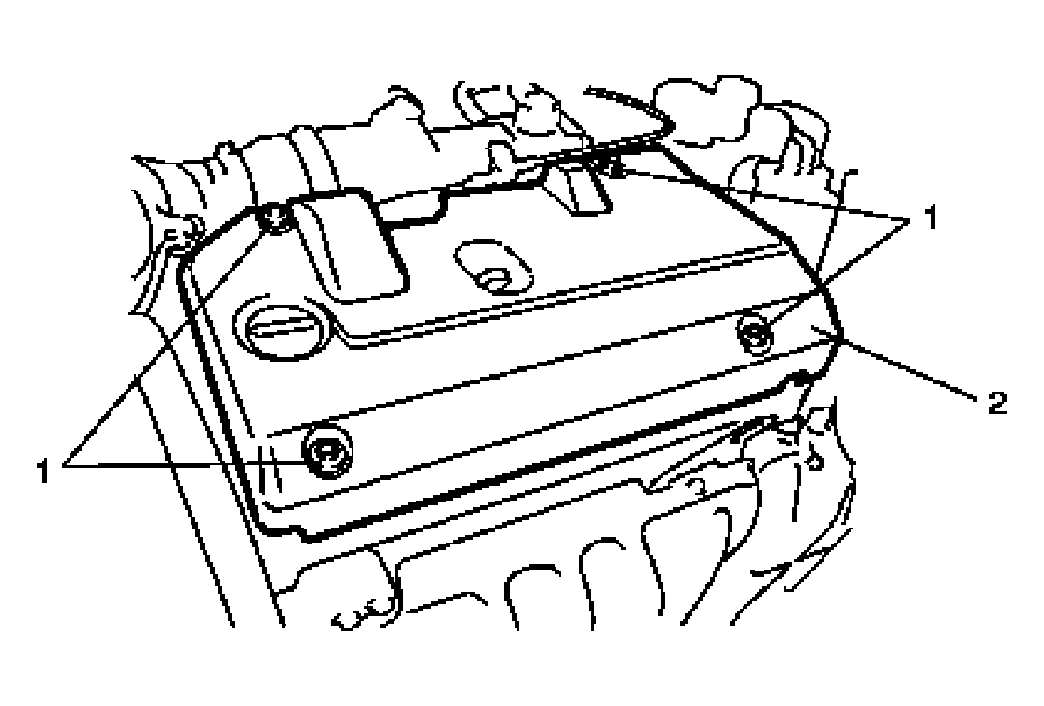

    Fig 1: Removing Engine Cover From Cylinder Head Cover
    G04589685Courtesy of SUZUKI OF AMERICA CORP.
