1st Timing Chain and Chain Tensioner Components

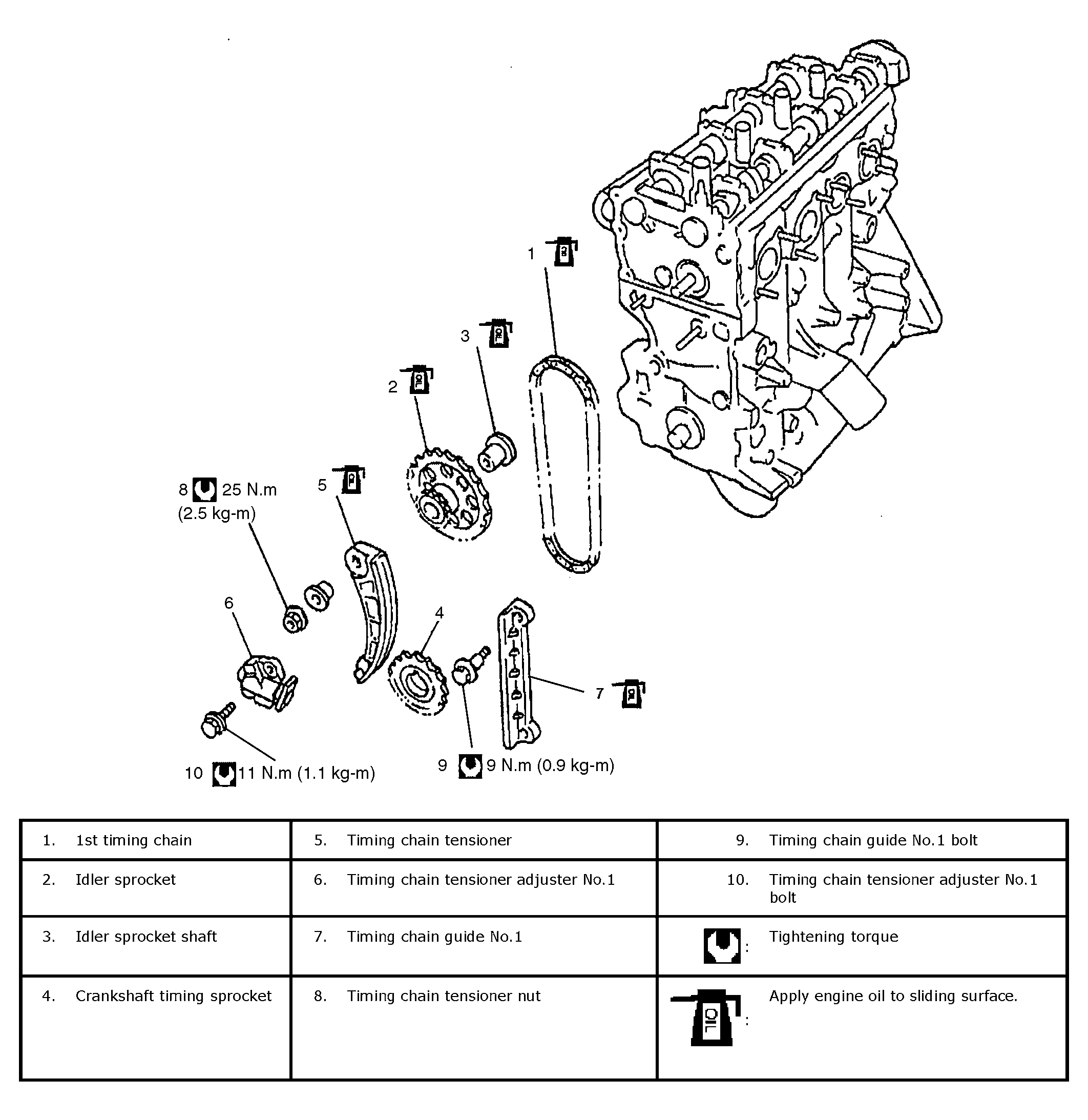

Fig 1: Identifying 1st Timing Chain and Chain Tensioner Components (With Tightening Torques)
G04589753Courtesy of SUZUKI OF AMERICA CORP.
