Headlight Aiming Adjustment with Screen
NOTE:
- Unless otherwise obligated by local regulations, adjust headlight aiming according to the following procedure.
- After replacing headlight assembly, be sure to adjust aiming.
- Make sure the following items.

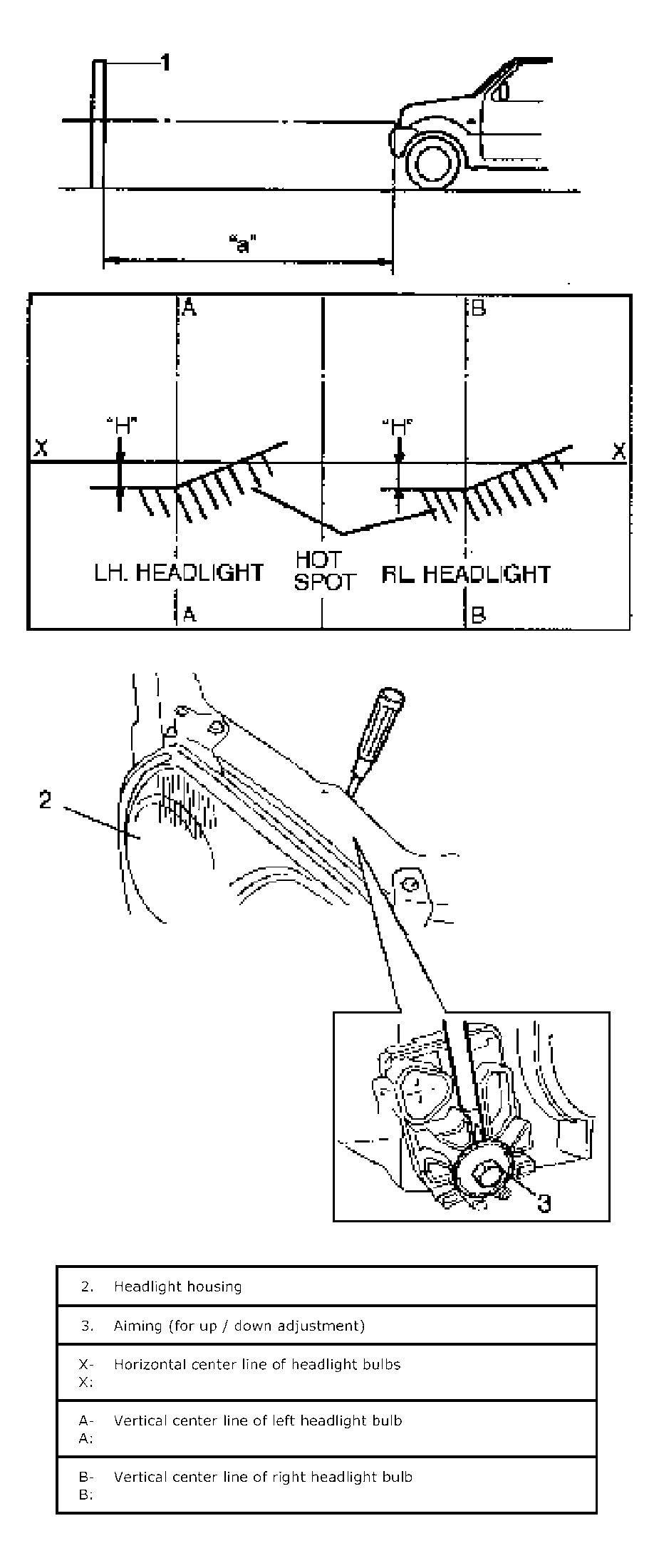

- Place vehicle on a flat surface in front of blank wall (screen) (1) ahead of headlight surface.
Distance "a"
10 m (32.8 ft.)
- Adjust air pressure of all tires to the specified value respectively.
- Bounce vehicle body up and down by hand to stabilize suspension.
- Carry out aiming with a driver aboard.
Driver's weight
68 kg (150 lb)
- Place vehicle on a flat surface in front of blank wall (screen) (1) ahead of headlight surface.
- Check to see if hot spot (high intensity zone) of each low beam axis falls as shown in figure.
Clearance "H"
Approx. 70 mm (2.76 in.)
- Align headlight aiming to specification by adjusting aiming gear if it is not set properly.
