Power Window Sub Switch Inspection
Inspect switch continuity between terminal.

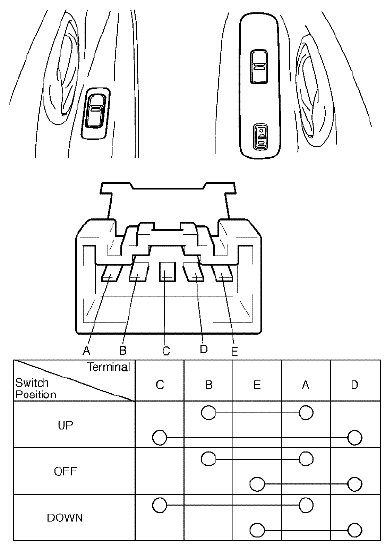

Fig 1: Identifying Power Window Sub Switch Connector Terminals & Continuity
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
