Cruise Control System Wiring Diagram

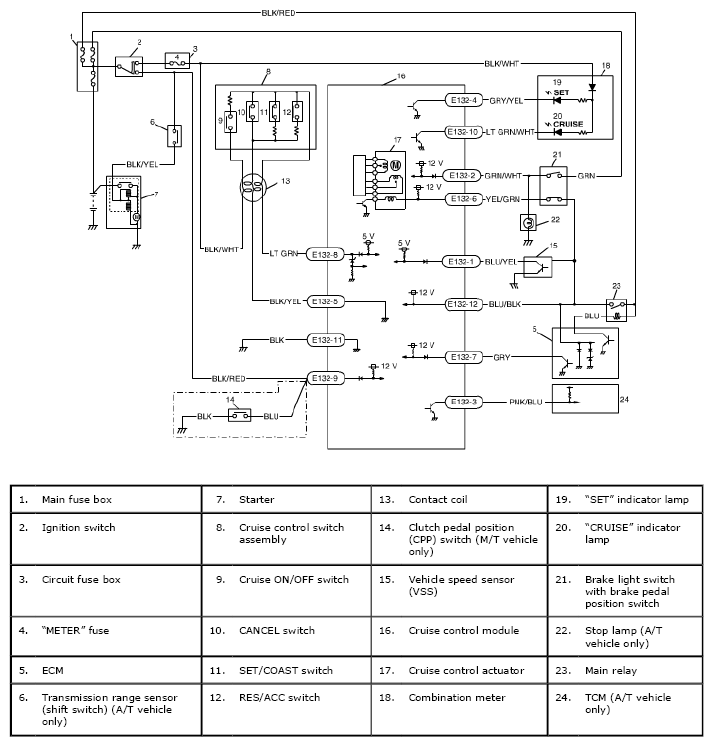

Fig 1: Cruise Control System Wiring Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Fig 2: Identifying Cruise Control Module Connector Terminal Arrangement
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
