4WD Control System Components

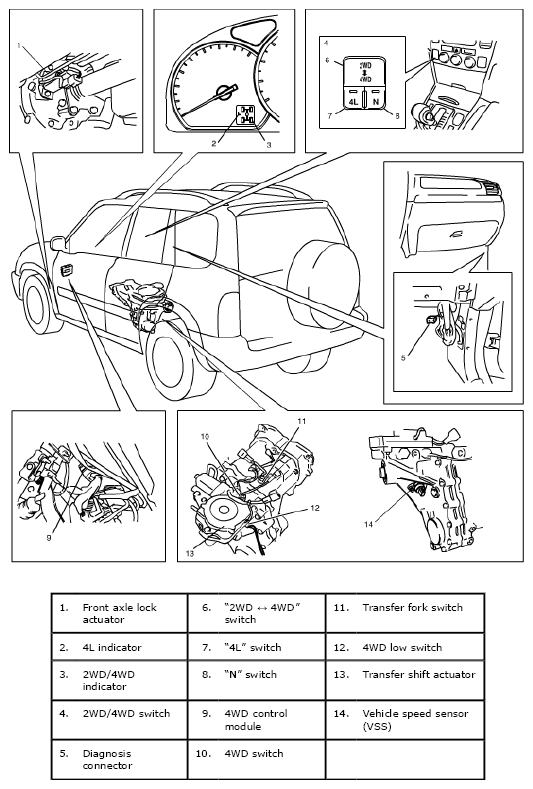

Fig 1: Identifying 4WD Control System Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
