2006
>>
XL-7 Premium, 4WD
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
Body Electrical Control System
>>
Schematic and Routing Diagram
>>
Body Electrical Control System Wiring Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Body Electrical Control System Wiring Circuit Diagram

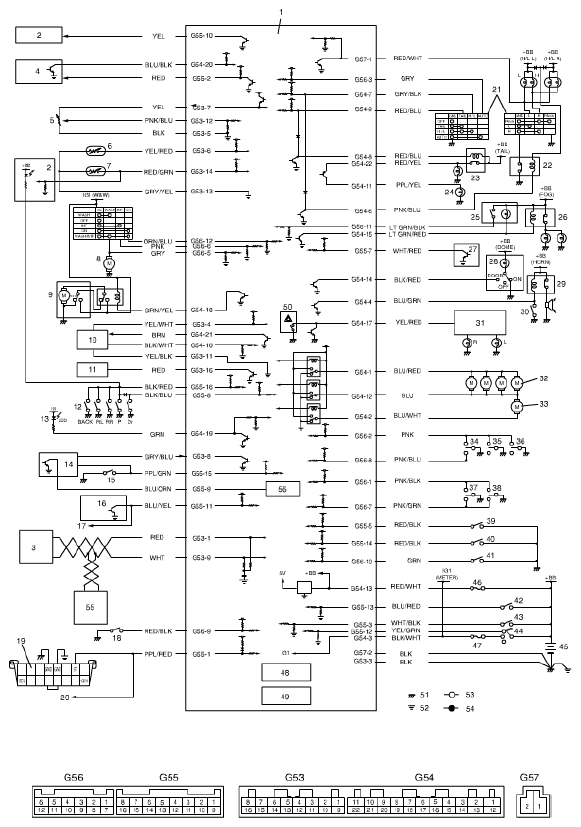

Fig 1: Identifying Body Electrical Control System Wiring Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.

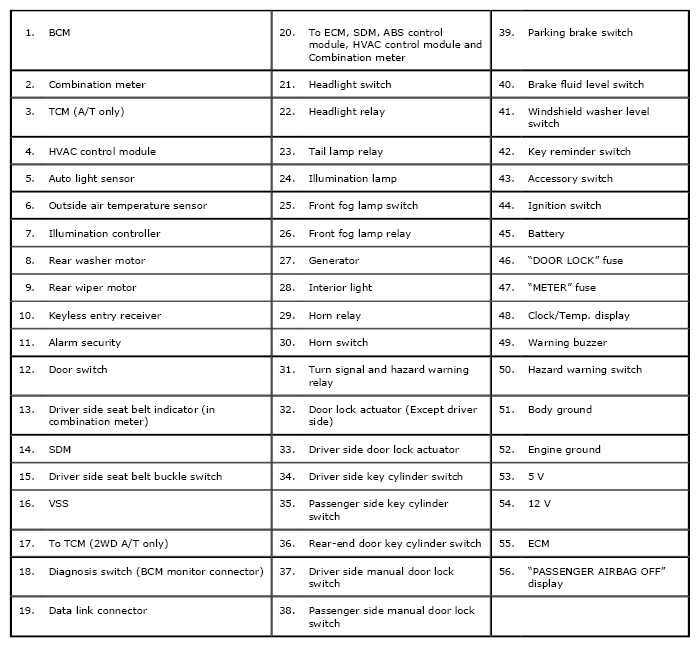

Fig 2: Identifying Body Electrical Control System Wiring Circuit Diagram Reference
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
