Contact Coil and Combination Switch Assembly Removal and Installation: Installation

Reference: CONTACT COIL AND COMBINATION SWITCH ASSEMBLY INSPECTION

  1. Check to make sure that vehicle's front tires are set at straight-ahead position and then ignition switch is at "LOCK" position.
  2. Install contact coil and combination switch assembly to steering column.
    NOTE: New contact coil and combination switch assembly is supplied with contact coil set and held at its center position with a lock pin (1). Remove this lock pin after installing contact coil and combination switch assembly to steering column.
    Fig 1: Identifying Lock Pin
    G04723172Courtesy of SUZUKI OF AMERICA CORP.
  3. Connect all connectors that have been removed in "Removal".
  4. Install steering column upper cover (2) and lower cover (3), and then tighten steering column cover screws (1).
    CAUTION: When installing lower cover (3) and upper cover (2), be careful so that contact coil and combination switch lead wire is not caught between covers.

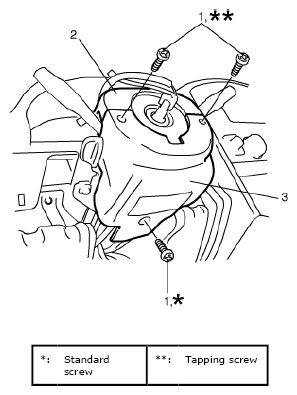

    Fig 2: Identifying Steering Column Upper Cover, Lower Cover & Screws
    G04723173Courtesy of SUZUKI OF AMERICA CORP.
  5. Install steering column hole cover (1).
    Fig 3: Identifying Steering Column Hole Cover
    G04723174Courtesy of SUZUKI OF AMERICA CORP.
  6. Install steering wheel to steering column. Refer to STEERING WHEEL REMOVAL AND INSTALLATION .
