Front Drive Shaft Components

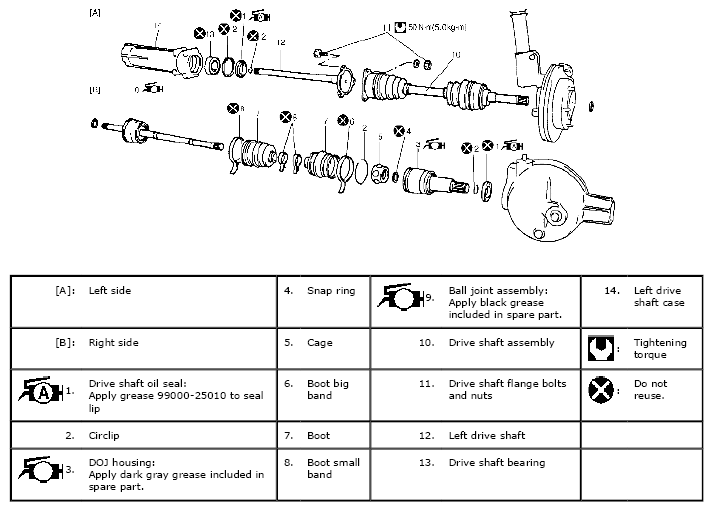

Fig 1: Front Drive Shaft Replacement Components With Torque Specifications
G04721894Courtesy of SUZUKI OF AMERICA CORP.
