Sliding Roof Motor Inspection

Reference: SLIDING ROOF MOTOR REMOVAL AND INSTALLATION

1. Remove head lining. Refer to HEAD LINING REMOVAL AND INSTALLATION . Remove sliding roof motor assembly (1).
2. Connect known-good sliding roof switch (2) to sliding roof motor assembly.
3. Connect 12 V battery positive (+) terminal to terminal "A" of motor assembly (1) and battery negative (-) terminal to terminal "B" of motor assembly (1) and sliding roof motor body ground lead wire (5).
4. Check that the sliding roof motor (1) runs according to the movement of the sliding roof switch (2). If motor does not operate as above, replace sliding roof motor assembly (1).

   Sliding roof motor specifications

   SLIDING ROOF MOTOR SPECIFICATIONS



   Sliding roof switch	Motor
   Tilt up	turn left
   Tilt down	turn right
   Slide open	turn right
   Slide close	turn left

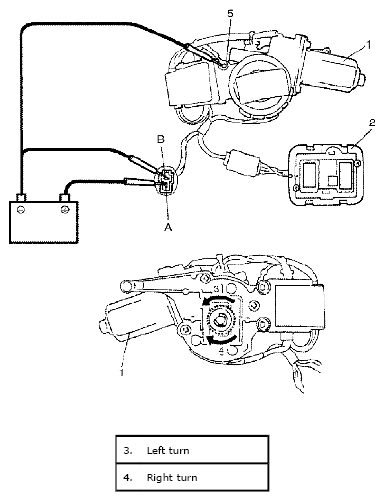

   Fig 1: Identifying Sliding Roof Motor Assembly, Switch, Left Turn, Right Turn & Body Ground Lead Wire

   Courtesy of SUZUKI OF AMERICA CORP.
