Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references

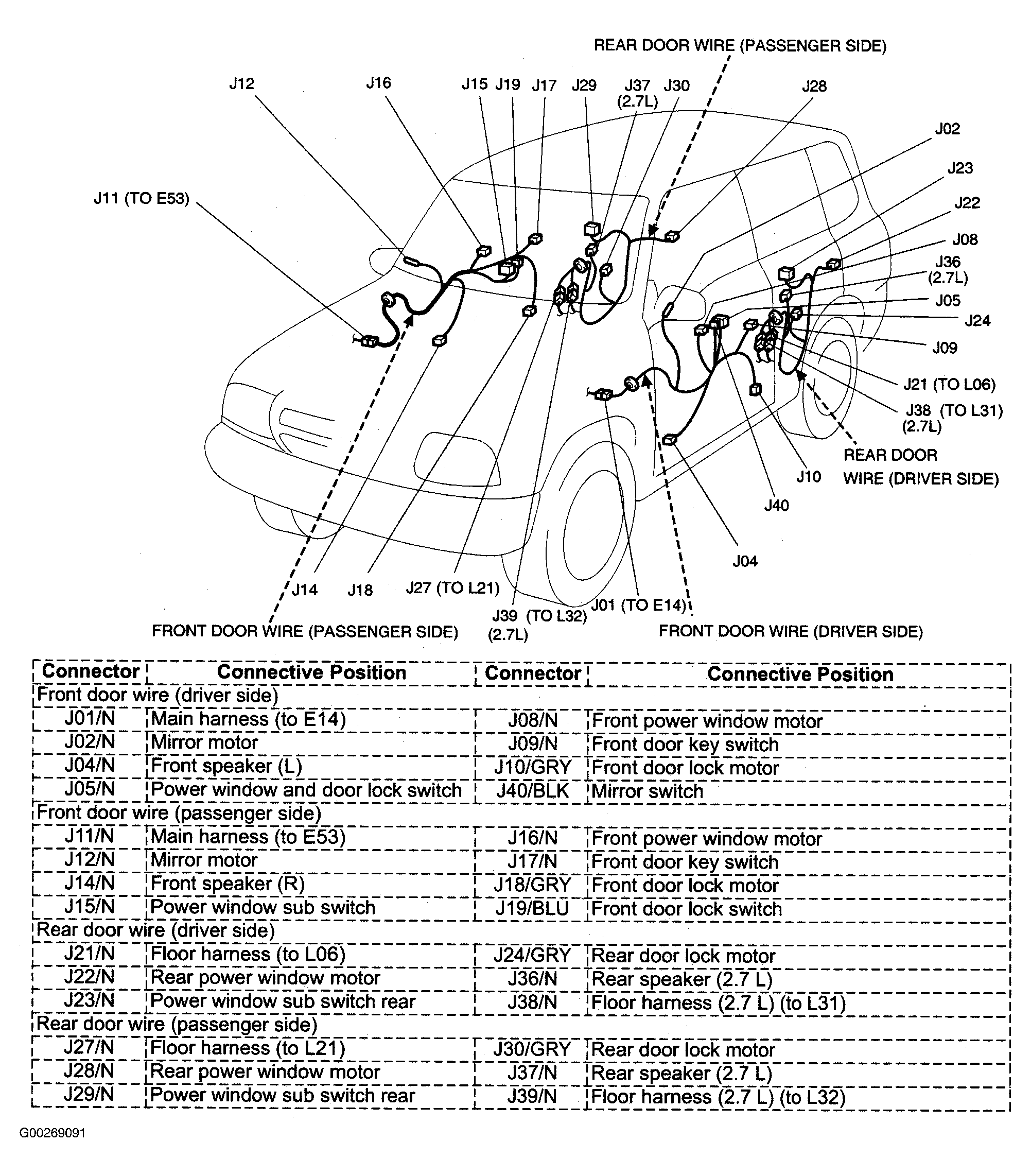

Fig 1: Vehicle Overview

Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Vehicle Overview

Courtesy of SUZUKI OF AMERICA CORP.

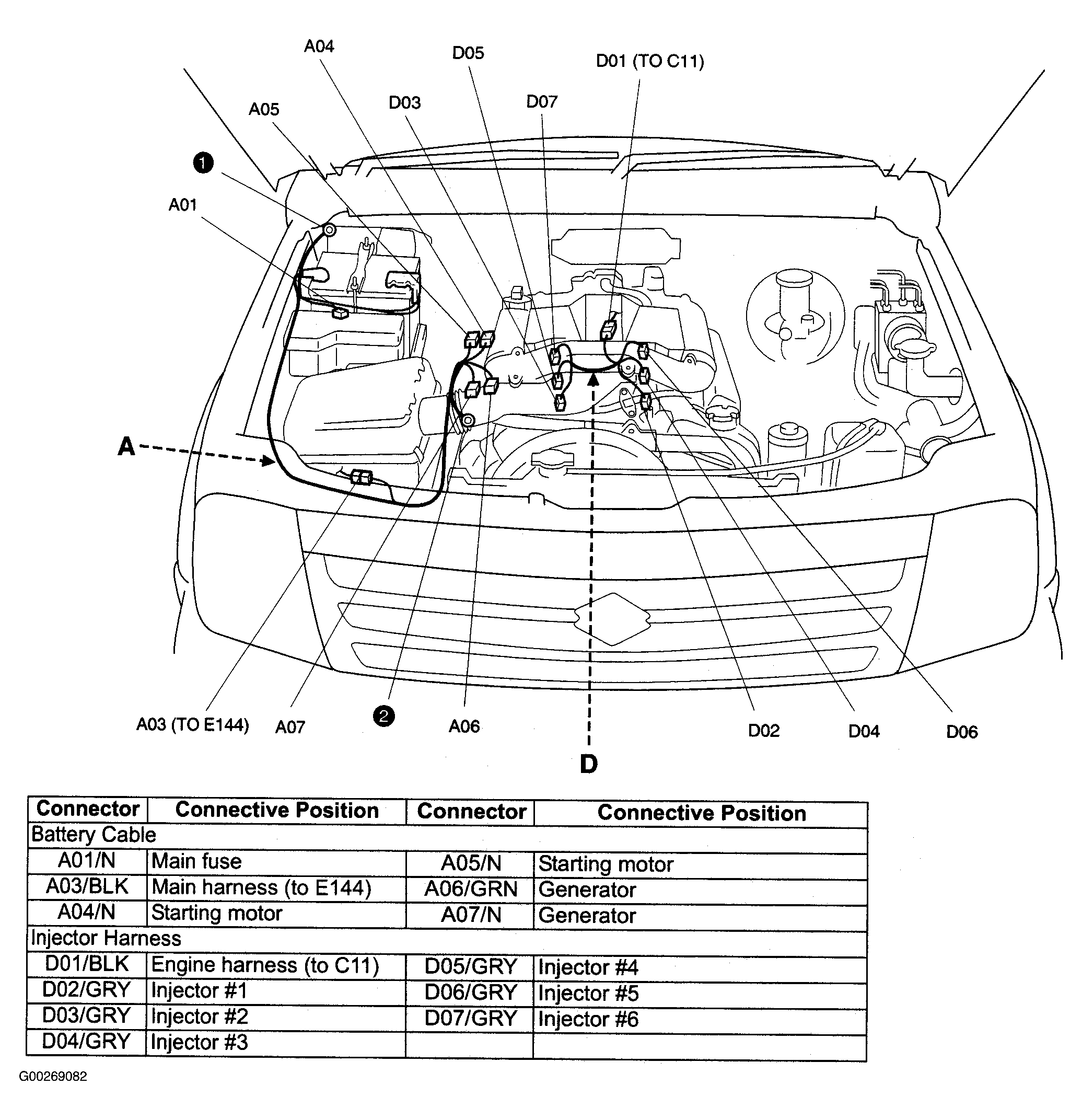

Fig 3: Engine Compartment

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Engine

Courtesy of SUZUKI OF AMERICA CORP.

Fig 5: Engine Compartment

Courtesy of SUZUKI OF AMERICA CORP.

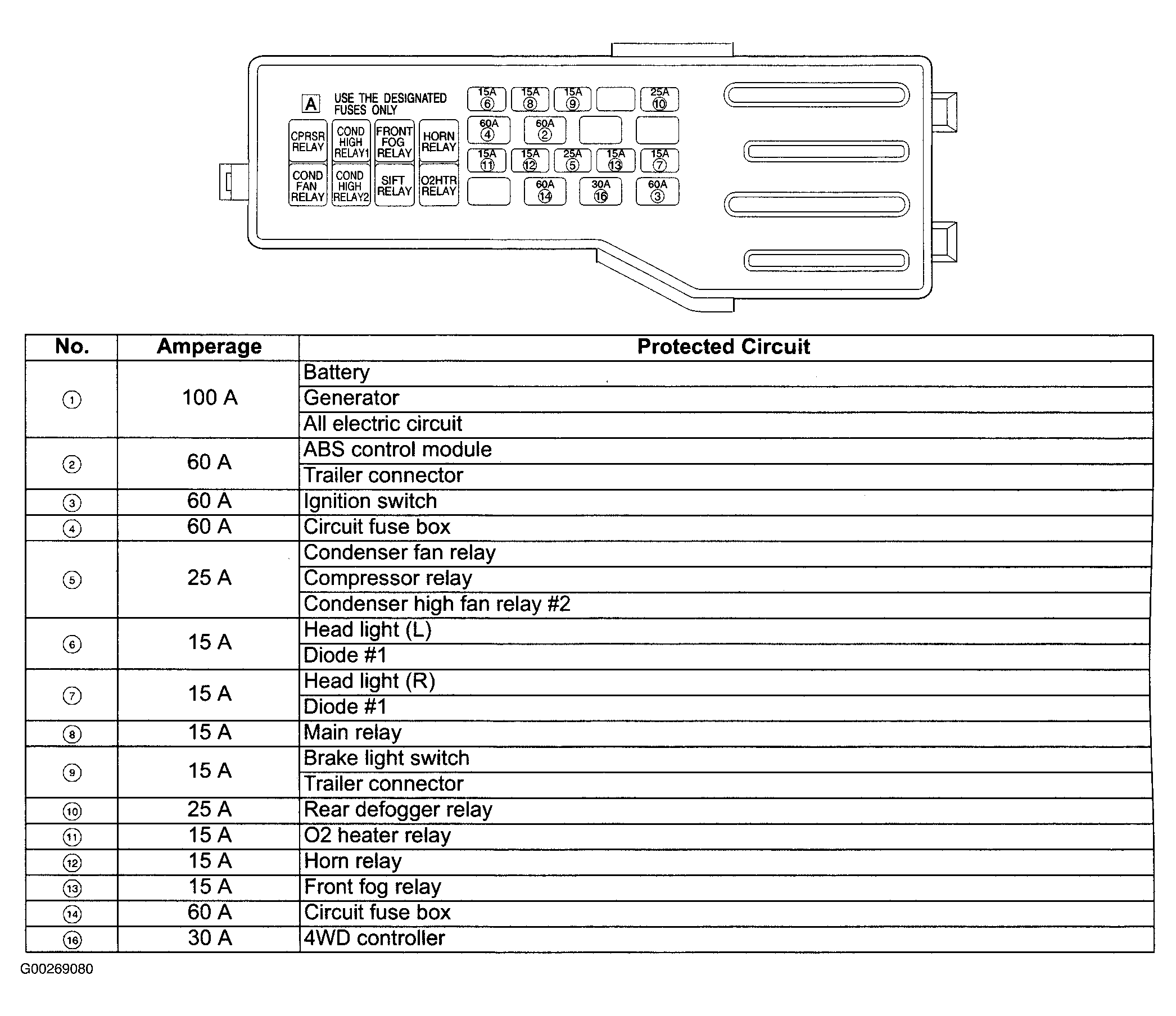

Fig 6: Main Fuse Box

Courtesy of SUZUKI OF AMERICA CORP.

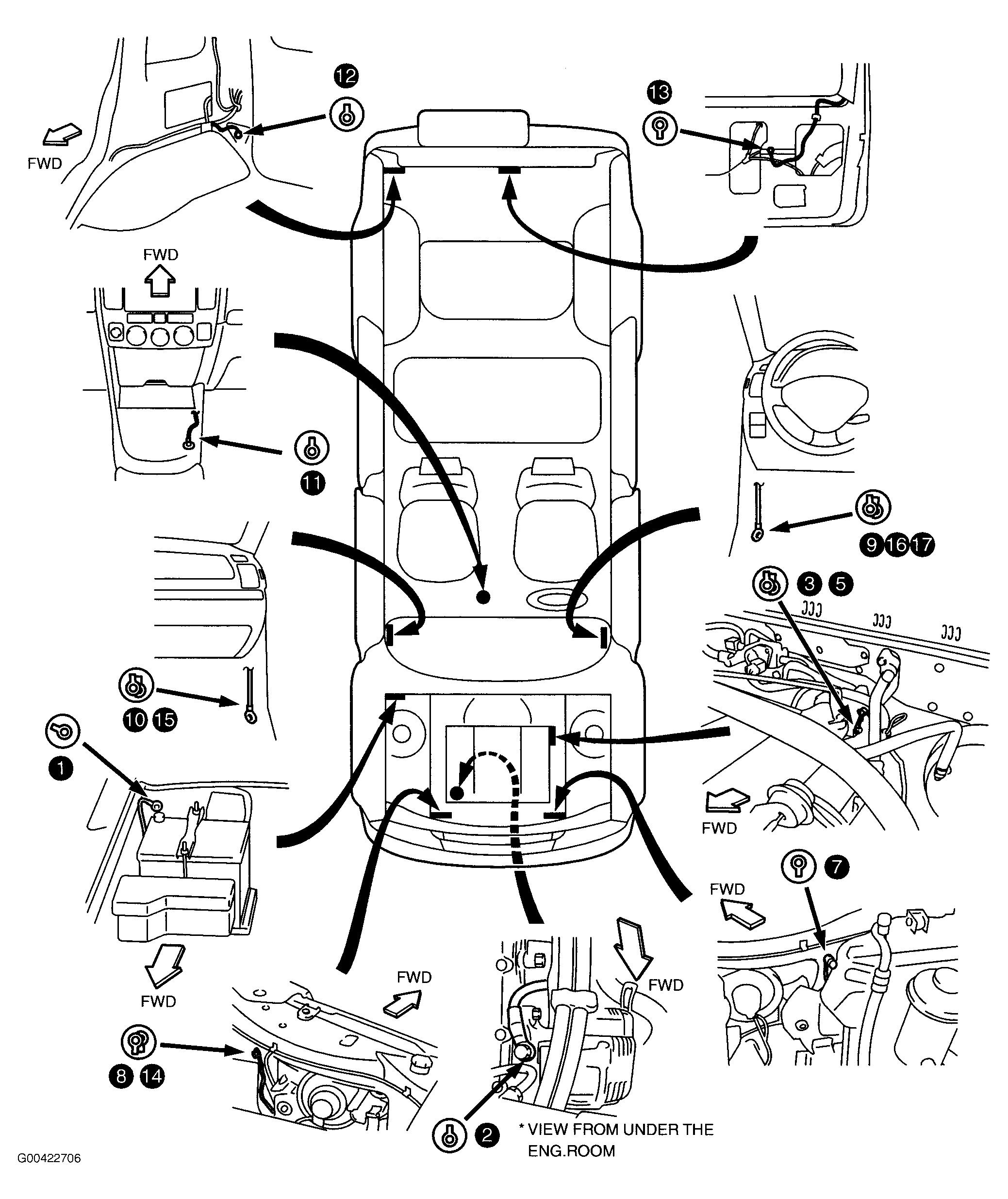

Fig 7: Vehicle Overview

Courtesy of SUZUKI OF AMERICA CORP.

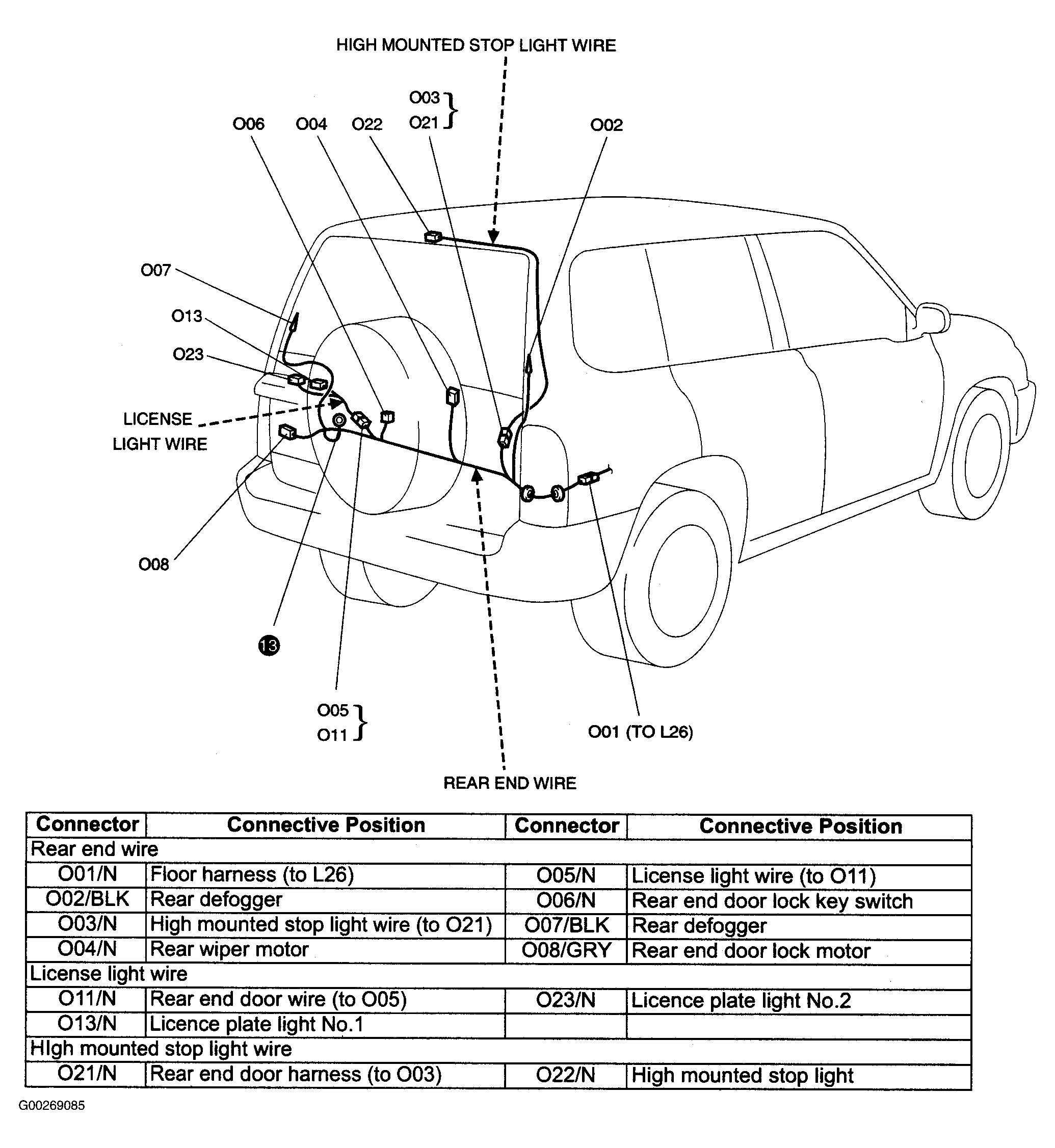

Fig 8: Vehicle Overview

Courtesy of SUZUKI OF AMERICA CORP.

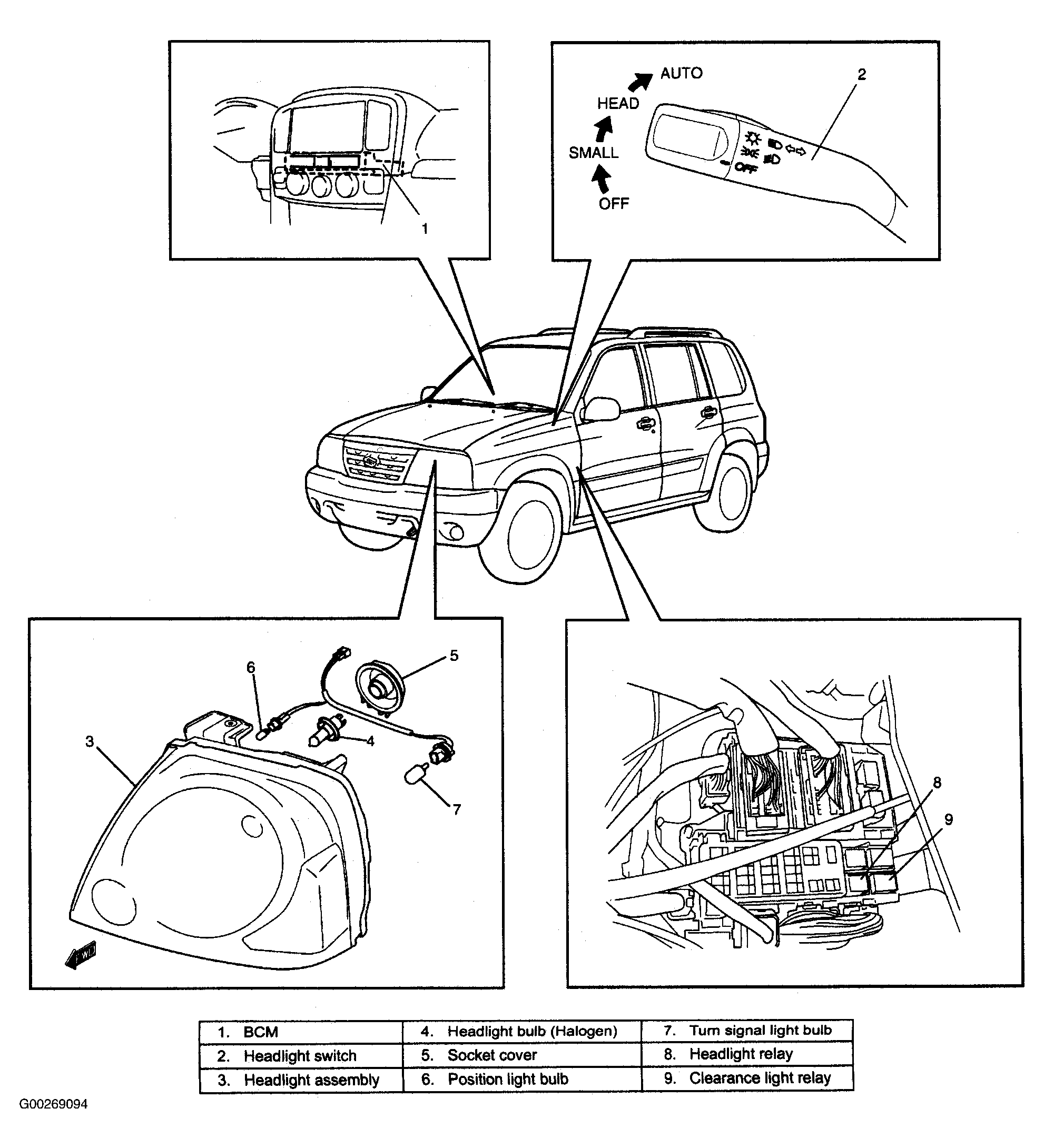

Fig 9: Vehicle Overview

Courtesy of SUZUKI OF AMERICA CORP.

Fig 10: Dash

Courtesy of SUZUKI OF AMERICA CORP.

Fig 11: Dash

Courtesy of SUZUKI OF AMERICA CORP.

Fig 12: Vehicle Overview

Courtesy of SUZUKI OF AMERICA CORP.
