Door Switch Inspection

Use an ohmmeter to check switch for continuity. If found defective, replace switch.

Door switch specifications

OFF position (Door closed): No continuity

ON position (Door open): Continuity

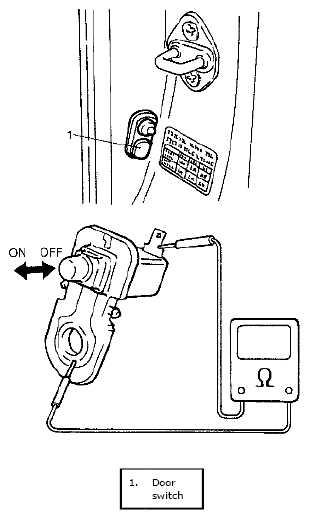

Fig 1: Identifying Door Switch Continuity
G04723812Courtesy of SUZUKI OF AMERICA CORP.
