Key Cylinder Switch Inspection

Inspect continuity at terminals according to the key action.

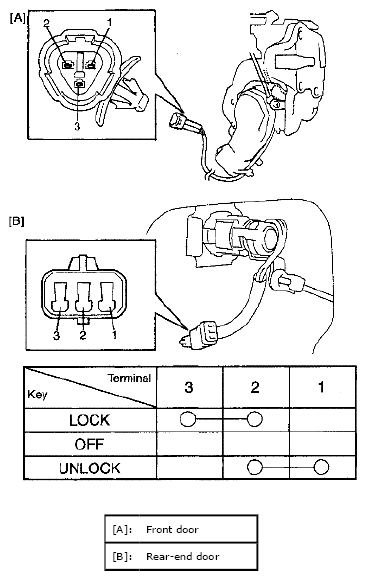

Fig 1: Identifying Key Cylinder Switch Connector Terminals
G04723907Courtesy of SUZUKI OF AMERICA CORP.
