Front Wiper and Washer Switch Inspection

Reference: FRONT WIPER AND WASHER SWITCH REMOVAL AND INSTALLATION

Check for continuity between terminals at each switch position as shown in the following figure. If check result is not as specified, replace.

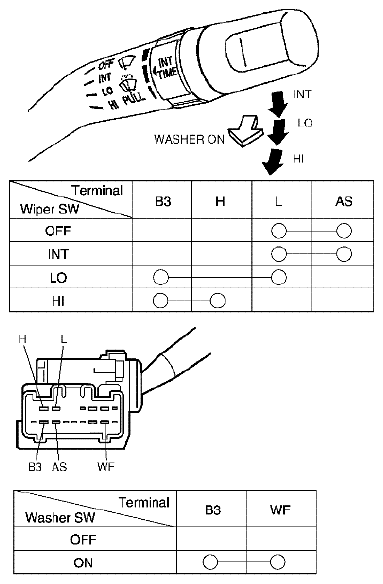

Fig 1: Identifying Front Wiper And Washer Switch Connector Terminals & Switch Positions

Courtesy of SUZUKI OF AMERICA CORP.
