Using SUZUKI scan tool
- Turn ignition switch to OFF position.
- Connect SUZUKI scan tool to data link connector (DLC) located on underside of instrument panel at driver's seat side.
Special Tool
(A): SUZUKI scan tool
- Turn ignition switch to ON position.
- Select "MISC TEST" under TPMS of SUZUKI scan tool.
- Activate each tire pressure sensor according to the instructions displayed on SUZUKI scan tool within 90 seconds.NOTE:

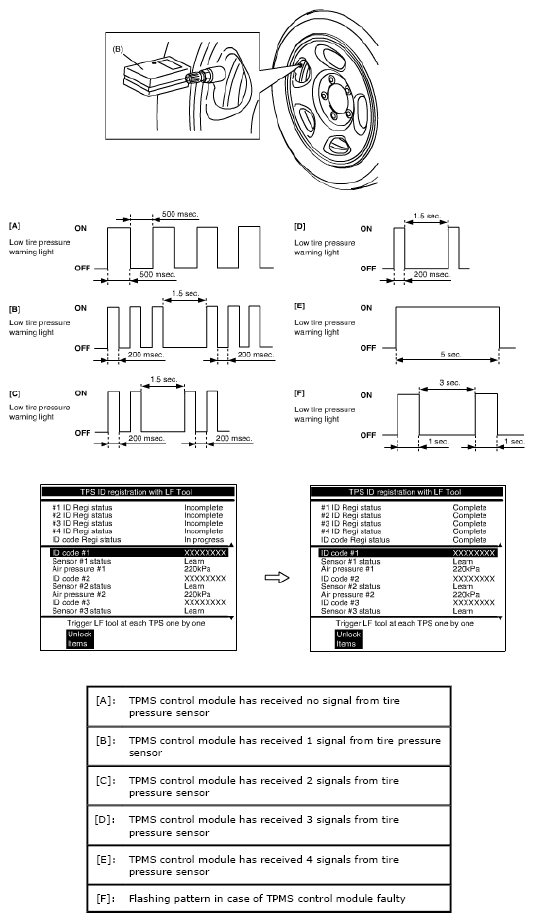

- When tire pressure sensor is to be activated, set the special tool to the same position as shown in the illustration below. If the special tool is set to other positions, there is a possibility that tire pressure sensor cannot be activated.
- When tire pressure sensor is activated, flashing LED and beeping sound of special tool indicate an activation of the tire pressure sensor. In case that LED does not flash and beeping sound is not heard even if special tool is normal, replace faulty tire pressure sensor.
- When tire pressure sensor is activated, ID code of the tire pressure sensor is registered automatically in TPMS control module.
- When "ID Code Regi Status" indicated on SUZUKI scan tool is "Complete", registration has been completed. If "Timeout" is indicated, perform the registration procedure all over. Also, it is possible to check the number of ID codes of tire pressure sensors received by TPMS control module by observing the flashing pattern of the low tire pressure warning light.
- When TPMS control module receives each ID code of 4 tire pressure sensors, TPMS control module turns ON low tire pressure warning light in combination meter for 5 seconds. If low tire pressure warning light starts flashing ON and OFF after the 5 seconds, replace TPMS control module with new one because internal fault of TPMS control module has occurred.
Special Tool
(B): 09945-86510
- Turn ignition switch OFF position and then disconnect SUZUKI scan tool from DLC.
