Cruise Control Cable Removal and Installation: Removal

  1. Disconnect cruise control cable (4) from cruise control arm and accelerator bracket.
  2. Remove actuator cap (1) and disconnect cruise control cable (4) from cruise control actuator assembly (with control module) (2).
  3. Release cable from all clamps.
  4. Remove cable from vehicle.

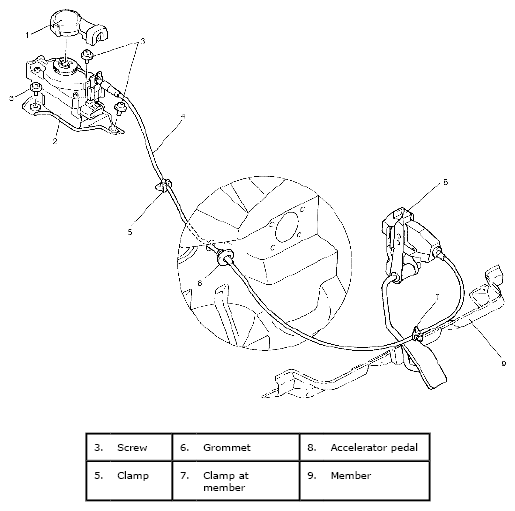

    Fig 1: Identifying Cruise Control Cable Components
    G04724025Courtesy of SUZUKI OF AMERICA CORP.
