Oil Pump Assembly Components

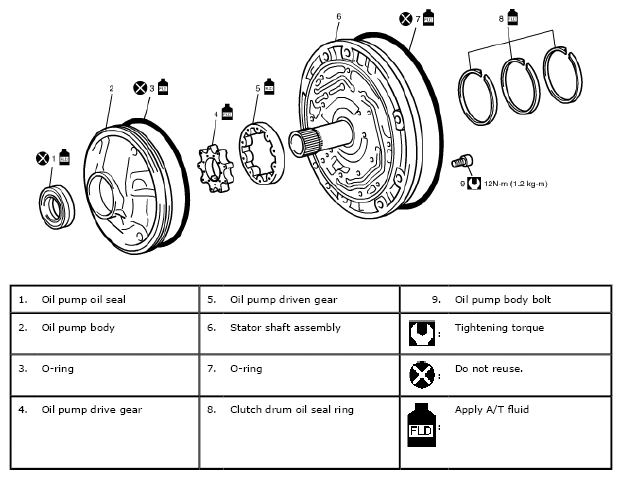

Fig 1: Oil Pump Assembly Replacement Components With Torque Specifications
G04722719Courtesy of SUZUKI OF AMERICA CORP.
