Camshaft Position (CMP) Sensor Removal and Installation: Removal

  1. Disconnect CMP sensor coupler (2).
  2. Remove A/T fluid level gauge (4) and filler tube (5).
  3. Remove CMP sensor (1) by removing bolt (3).

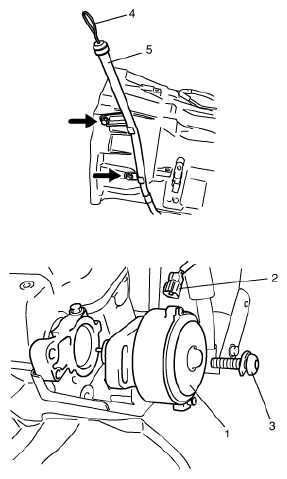

    Fig 1: Identifying CMP Sensor Coupler, CMP Sensor, Bolt, A/T Fluid Level Gauge And Filler Tube
    G04721172Courtesy of SUZUKI OF AMERICA CORP.
