Front Differential Disassembly

Reference: FRONT DIFFERENTIAL DISMOUNTING AND REMOUNTING: FRONT

1. Remove front drive shaft (1) from front drive shaft case (2) by using plastic hammer.

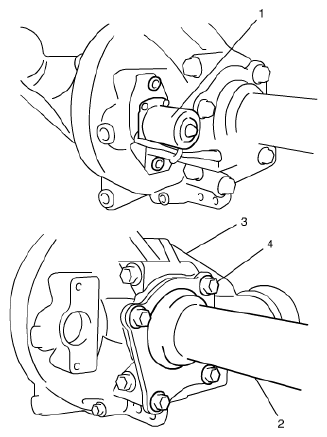

   Fig 1: Identifying Front Drive Shaft & Front Drive Shaft Case

   Courtesy of SUZUKI OF AMERICA CORP.
2. Remove axle lock actuator motor (1) and front drive shaft case (2) from differential housing (3) by removing bolts (4).
   Fig 2: Identifying Axle Lock Actuator Motor, Front Drive Shaft Case, Differential Housing & Bolts

   Courtesy of SUZUKI OF AMERICA CORP.
3. Remove front mounting bracket R (1) from differential housing (2) by removing bolts (3).
   Fig 3: Identifying Front Mounting Bracket R, Differential Housing & Bolts

   Courtesy of SUZUKI OF AMERICA CORP.
4. Remove 8 bolts (1, 2) and differential carrier cover for differential carrier.
   NOTE: Loosen 8 mm thread diameter bolts (2) first, and then loosen 12 mm thread diameter bolts (1).
   Fig 4: Identifying Differential Carrier Bolts

   Courtesy of SUZUKI OF AMERICA CORP.
5. Remove axle lock actuator mounting bolts (1).
6. Take off differential side bearing outer races (2) and bevel gear with differential case (3).
   Fig 5: Identifying Differential Side Bearing Outer Races, Bolts And Bevel Gear With Differential Case

   Courtesy of SUZUKI OF AMERICA CORP.
7. Hold universal joint flange with special tool, and then remove flange nut by using socket wrench (2) and power wrench (3).

   Special Tool

   (B): 09922-66021

   Fig 6: Identifying Bolt, Socket Wrench And Power Wrench

   Courtesy of SUZUKI OF AMERICA CORP.
8. Make mating marks (1) on pinion and universal joint flange.
   CAUTION: Do not make mating mark on the coupling surface of the flange.
9. Remove universal joint flange from pinion using special tool.

   Special Tool

   (C): 09913-65135

   Fig 7: Identifying Mating Marks & Special Tool

   Courtesy of SUZUKI OF AMERICA CORP.
10. Remove pinion with front bearing and bearing pinion spacer from differential carrier. If it is hard to remove, screw an used nut into pinion and hammer on the nut with a plastic hammer but never directly on pinion.
    Fig 8: Removing Pinion With Front Bearing And Bearing Pinion Spacer

    Courtesy of SUZUKI OF AMERICA CORP.
11. Remove oil seal and take out rear bearing.
12. Using special tool, pull out differential side bearings.

    Special Tool

    (D): 09913-85230

    Fig 9: Identifying Differential Side Bearings Special Tool

    Courtesy of SUZUKI OF AMERICA CORP.
13. With aluminum plates (3) placed on vise first, grip differential case with it and remove bevel gear (2) by removing bolts (1).
    CAUTION: Use care not to hold axle lock clutch part with vise. Be sure to hold differential left case.
    Fig 10: Identifying Bolts, Bevel Gear & Aluminum Plates

    Courtesy of SUZUKI OF AMERICA CORP.
14. Separate differential case assembly by removing 2 screws (2) and take out free axle hub, differential gears and shims from differential left case (1).
    Fig 11: Identifying Axle Lock Clutch, Differential Left Case And Screw

    Courtesy of SUZUKI OF AMERICA CORP.
15. Remove front bearing (2) from pinion (1) by using bearing puller (3) and hydraulic press.
    Fig 12: Identifying Front Bearing, Pinion & Puller

    Courtesy of SUZUKI OF AMERICA CORP.
16. Drive out pinion bearing outer races in differential carrier by hammering metal stick applied to them.
    Fig 13: Applying Metal Stick To Bearing Outer Races

    Courtesy of SUZUKI OF AMERICA CORP.
