ABS Identification

ABS type, type 1 or type 2, is distinguished by pipe fitting.

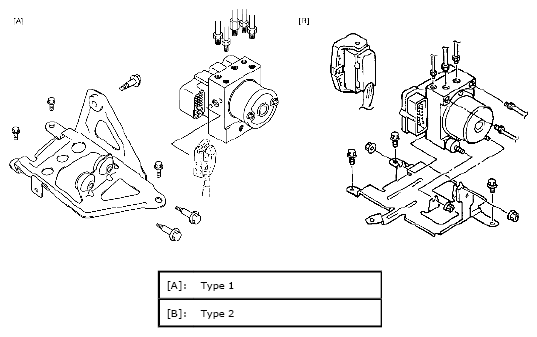

Fig 1: Identifying ABS Type
G04722439Courtesy of SUZUKI OF AMERICA CORP.
