On-Board Diagnostic System Description: Notes
For 4WD control system, 4WD control module has the following functions.

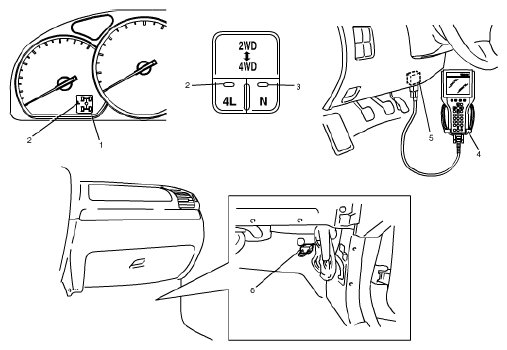

- When ignition switch is turned ON with engine at stop, 2WD/4WD indicator (1), 4L indicators (2) (in combination meter and "4L" switch) and N indicator (3) turn on for 2 seconds in order to check operation of these indicators.
- When 4WD control module detects any malfunction in the following area, 2WD/4WD indicator (1), 4L indicators (2) (in combination meter and "4L" switch) and N indicator (3) flash continuously and 4WD control module come into fail-safe mode. For details of fail safe mode, refer to FAIL-SAFE TABLE .
- "2WD <--> 4WD" switch
- "N" switch
- "4L" switch
- Transfer shift actuator motor
- Transfer shift actuator motor position sensor
- Transfer fork switch
- 4WD switch
- 4WD low switch
- Front axle lock actuator
- DTC can be checked by either one of the following ways.
- DTC can be checked by using SUZUKI scan tool (4) connected to DLC (5).
- Without using SUZUKI scan tool, DTC can be read through flashing pattern of 2WD/4WD indicator (1), 4L indicators (2) (in combination meter and "4L" switch) and N indicator (3) by shorting diagnosis connector (6).
- When 4WD control module detects any malfunction, 4WD control module will shift automatically to either 2H or former position which is in before shifting process began.
