Mode 6 - 2001-2007: 2003

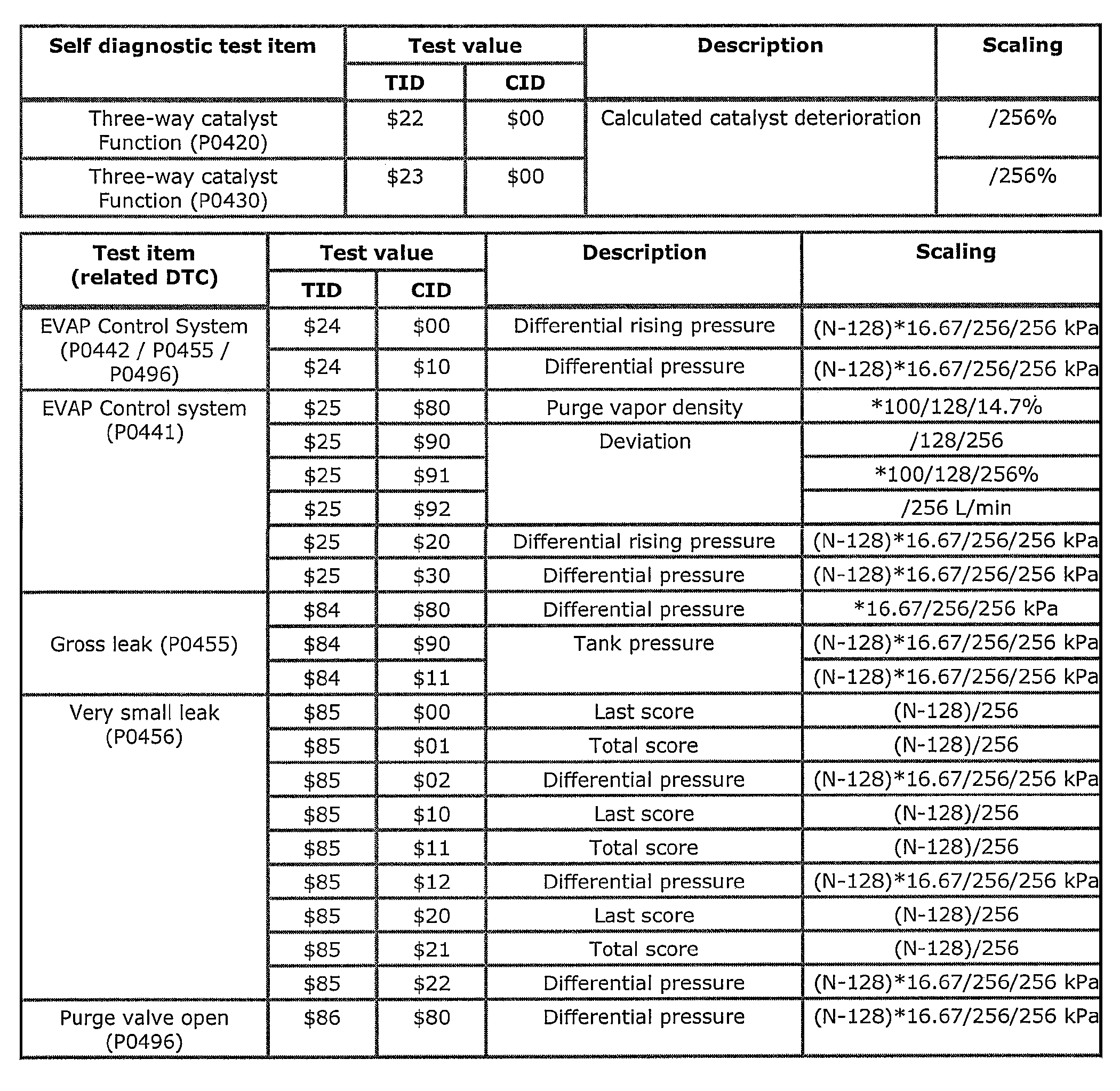

Fig 1: Mode $06 Data For '03 XL-7 (1 Of 3)
G00453072Courtesy of SUZUKI OF AMERICA CORP.

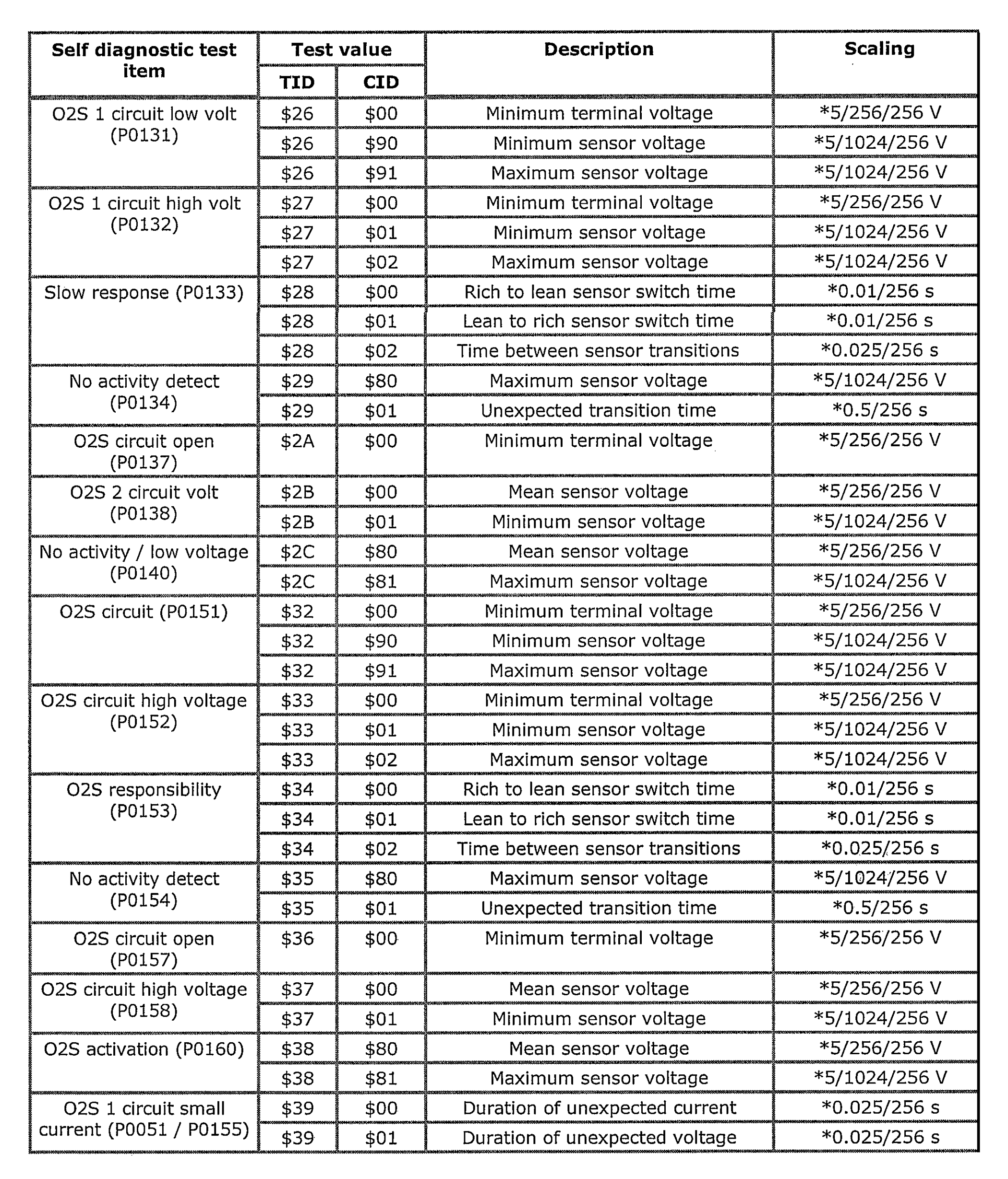

Fig 2: Mode $06 Data For '03 XL-7 (2 Of 3)
G00453073Courtesy of SUZUKI OF AMERICA CORP.

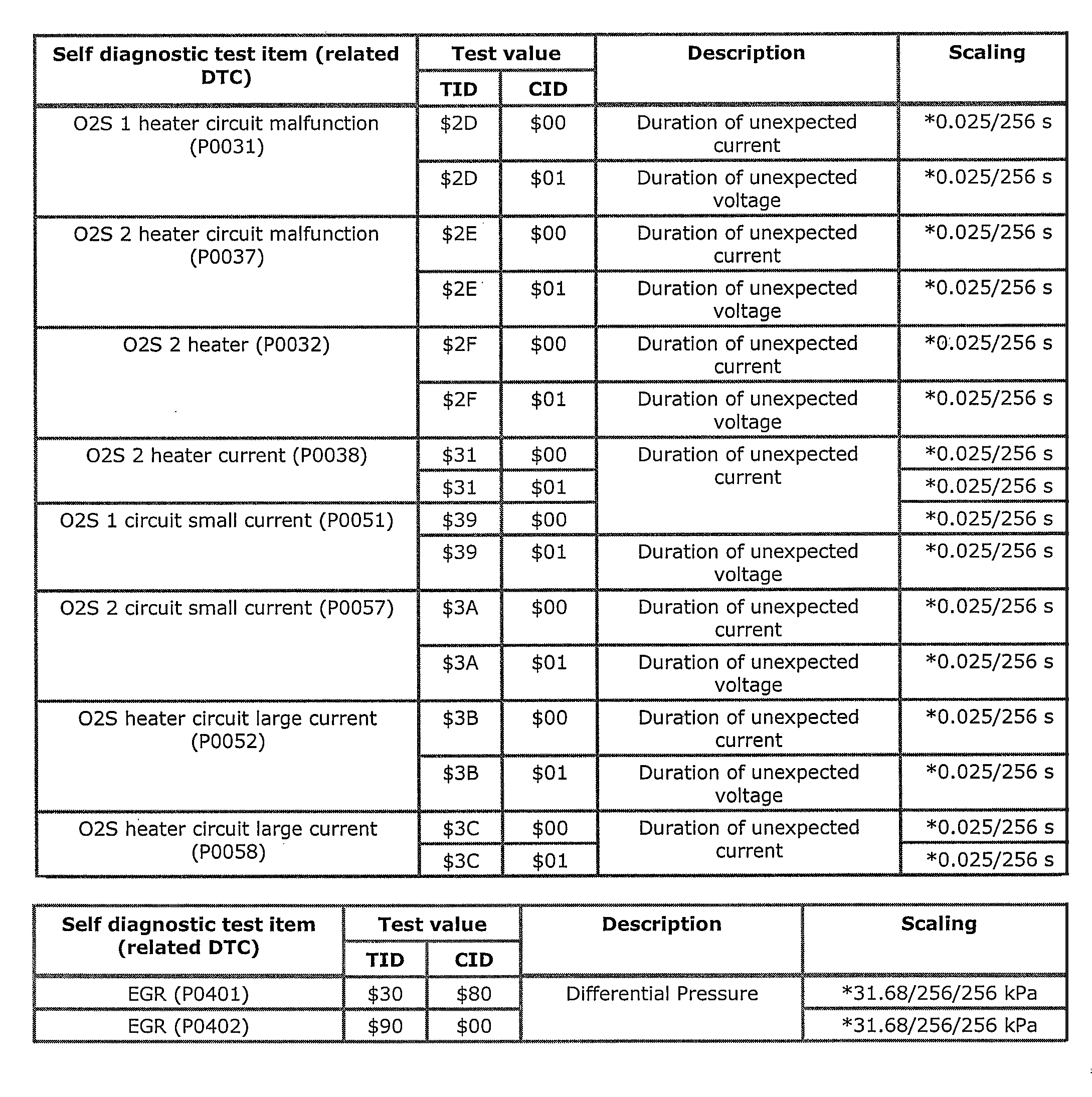

Fig 3: Mode $06 Data For '03 XL-7 (3 Of 3)
G00453074Courtesy of SUZUKI OF AMERICA CORP.
