Suzuki
>>
2006
>>
XL-7 Base, 4WD, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System
>>
Schematic & Routing Diagram
>>
Ignition System Wiring Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Ignition System Wiring Circuit Diagram

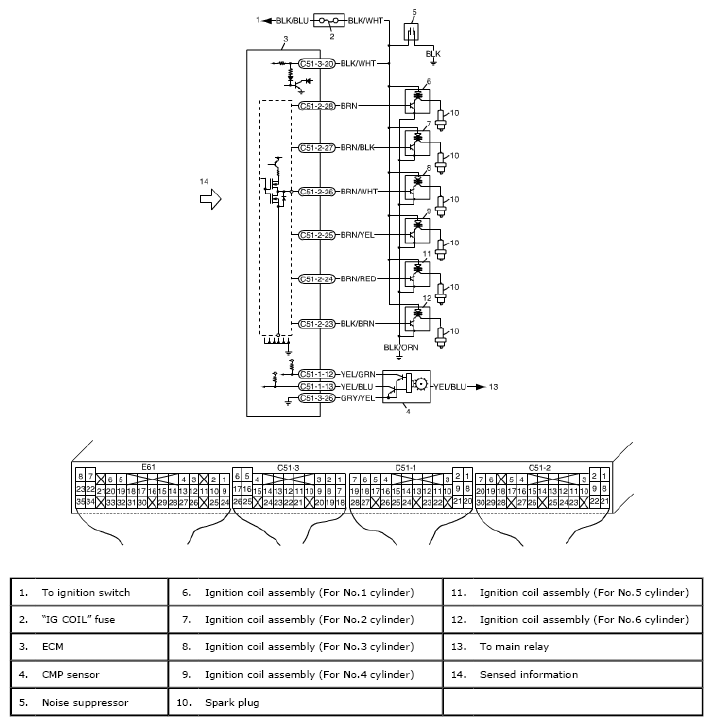

Fig 1: Ignition System Wiring Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
