Valves and Cylinder Heads Components

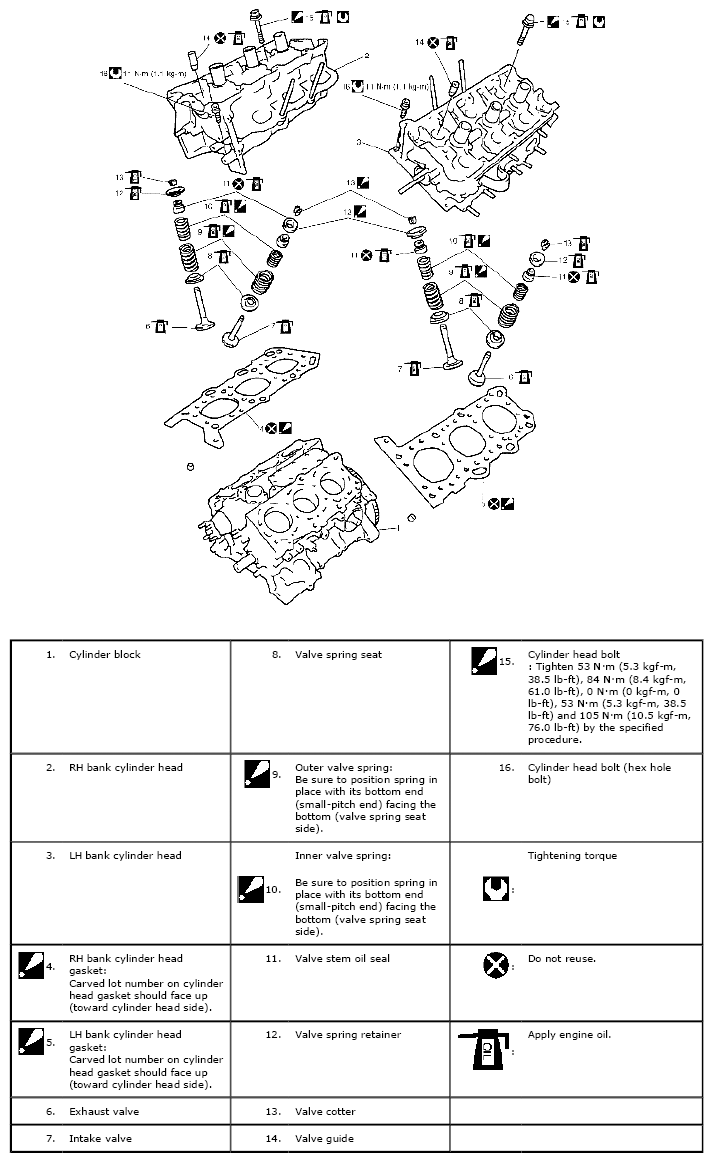

Fig 1: Valves And Cylinder Heads Replacement Components With Torque Specifications
G04721320Courtesy of SUZUKI OF AMERICA CORP.
