Starting Motor Description

The starting motor consists of parts shown in below and has permanent magnets mounted in starting motor yoke (frame).

The magnetic switch assembly and parts in the starting motor are enclosed in the housings so that they will be protected against possible dirt and water splash.

NOTE:

Make sure to apply grease before assembly where so indicated "A" in the figure.
Spare parts have been lubricated.

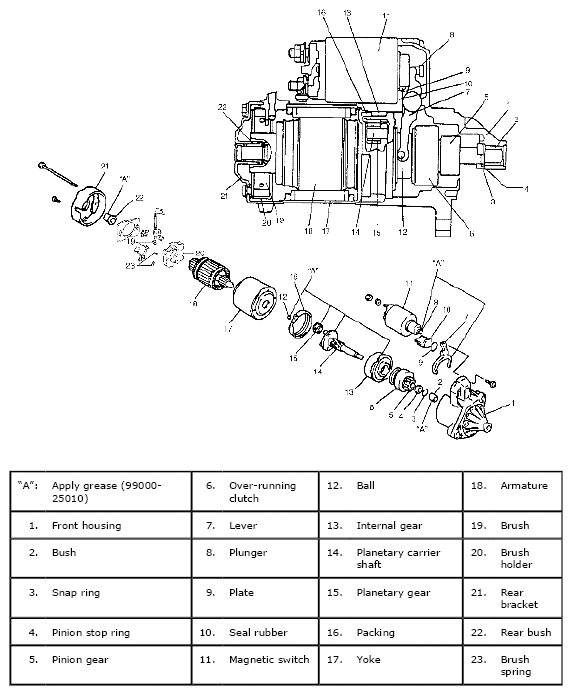

Fig 1: Exploded View Of Starting Motor
Courtesy of SUZUKI OF AMERICA CORP.
