Battery Dismounting and Remounting: Remounting

  1. Reverse removal procedure.
  2. Torque battery cables to specification.
    NOTE: Check to be sure that ground cable has enough clearance to hood panel by terminal.

    Tightening torque

    Battery ground bolt a: 8.0 N.m (0.8 kg-m, 6.0 lb-ft)

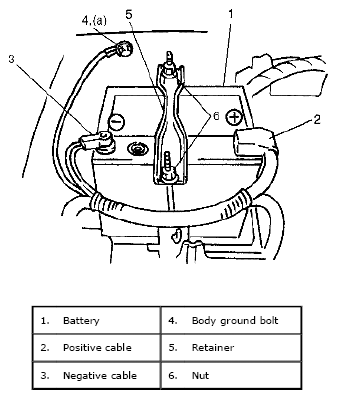

    Fig 1: Identifying Battery Mounting Components
    G04721633Courtesy of SUZUKI OF AMERICA CORP.
