BCM and Related System Location

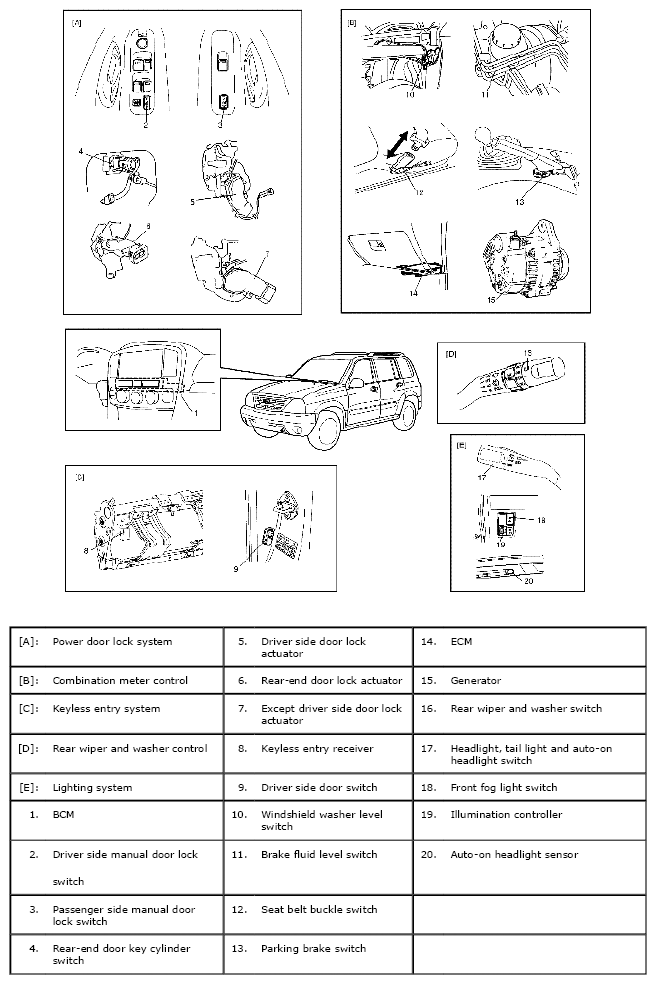

Fig 1: Identifying BCM And Related System Components
Courtesy of SUZUKI OF AMERICA CORP.
