Contact Coil and Combination Switch Assembly Removal and Installation: Removal

Remove steering wheel from steering column. Refer to STEERING WHEEL REMOVAL AND INSTALLATION .
Remove steering column hole cover (1).

Fig 1: Identifying Steering Column Hole Cover
Courtesy of SUZUKI OF AMERICA CORP.
Remove steering column cover screws (1) (3 pieces).
Separate upper cover (2) and lower cover (3), then remove them.

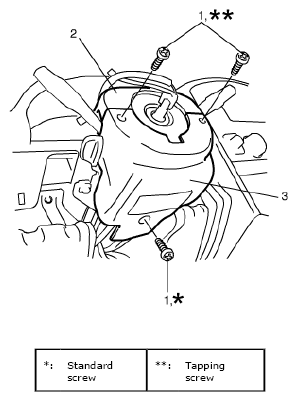

Fig 2: Identifying Steering Column Cover Screws, Upper Cover And Lower Cover
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect all connectors for contact coil and combination switch assembly.
Remove contact coil and combination switch assembly (1) from steering column.

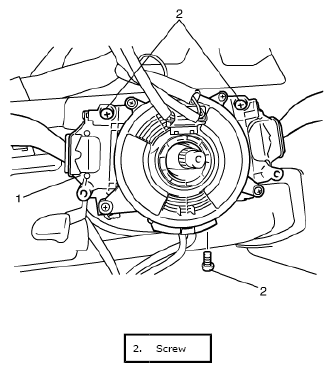

Fig 3: Identifying Combination Switch Assembly & Screw
Courtesy of SUZUKI OF AMERICA CORP.
