DTC P0500: Vehicle Speed Sensor: Wiring Diagram

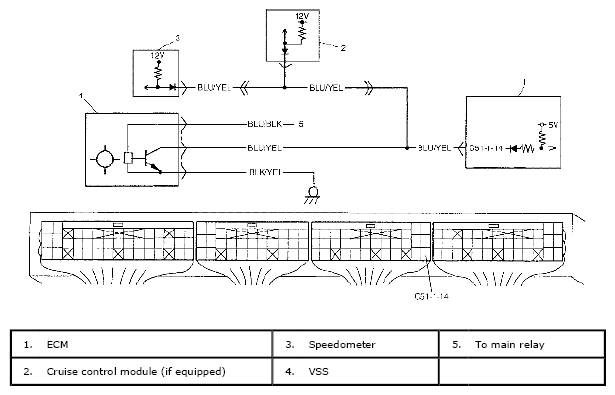

Fig 1: DTC P0500 - Wiring Diagram

G04720993

Courtesy of SUZUKI OF AMERICA CORP.
