Oil Pan and Oil Pump Strainer Components

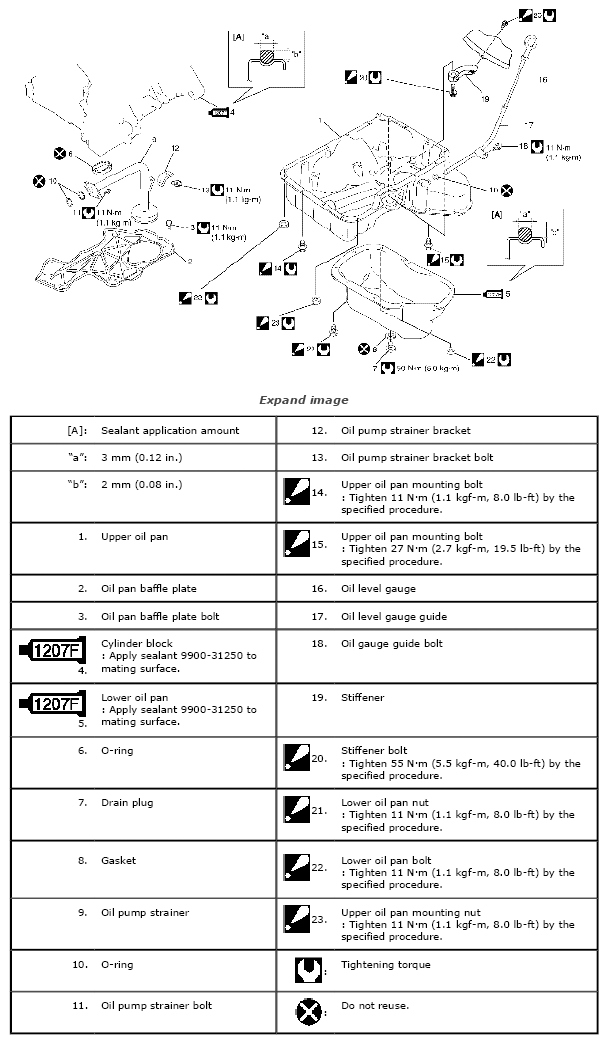

Fig 1: Oil Pan And Oil Pump Strainer Replacement Components With Torque Specifications
G04721445Courtesy of SUZUKI OF AMERICA CORP.
