Front Differential Components

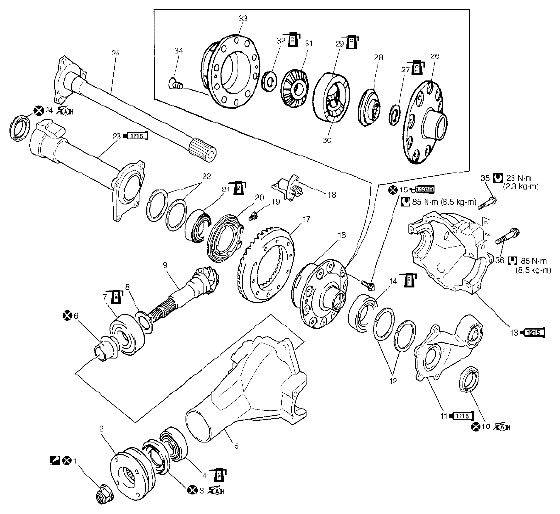

Fig 1: Front Differential Replacement Components With Torque Specifications (1 Of 2)
G04721938Courtesy of SUZUKI OF AMERICA CORP.

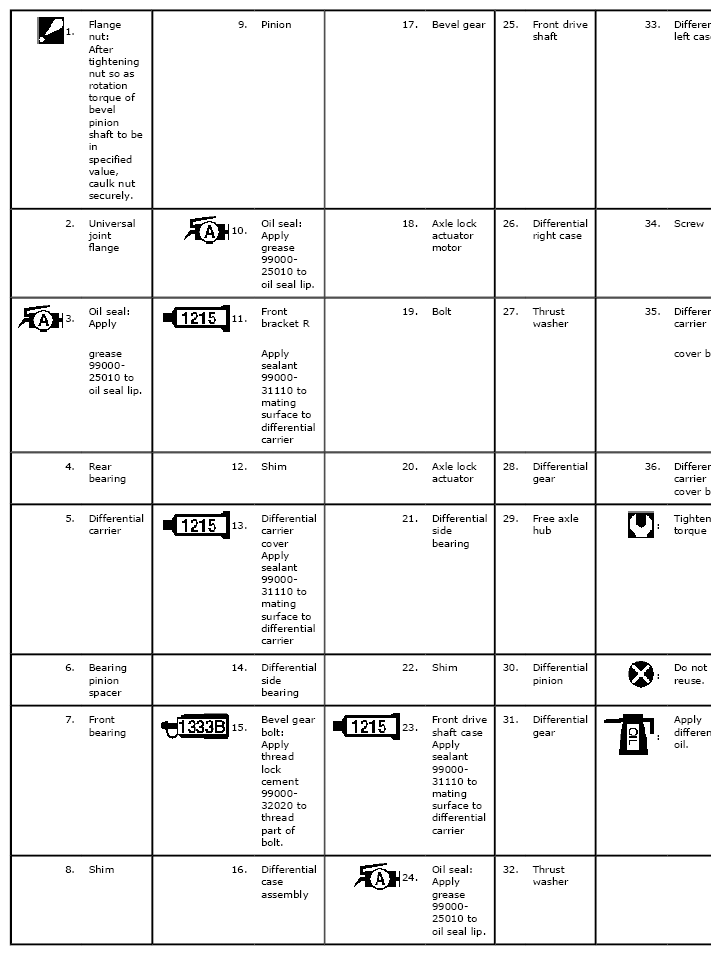

Fig 2: Front Differential Replacement Components With Torque Specifications (2 Of 2)
G04721939Courtesy of SUZUKI OF AMERICA CORP.
