ABS Hydraulic Unit/Control Module Assembly Removal and Installation: Removal

Disconnect negative cable at battery.
Disconnect ABS hydraulic unit/control module assembly connector (1) by pulling up lock (2).

Fig 1: Identifying ABS Hydraulic Unit/Control Module Assembly Connector & Lock
Courtesy of SUZUKI OF AMERICA CORP.
Using special tool (flare nut wrench), loosen flare nuts (1) and disconnect brake pipes (2) from ABS hydraulic unit/control module assembly (3).
Special Tool

: 09950-78220

NOTE: Put bleeder plug cap onto pipe to prevent fluid from spilling. Do not allow brake fluid to get on painted surfaces.

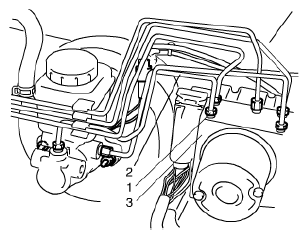

Fig 2: Identifying Brake Pipes, Flare Nuts & ABS Hydraulic Unit/Control Module Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Remove three bolts and take out ABS hydraulic unit/control module assembly (1) from bracket using flat end rod or the like (2).
CAUTION:
- Do not give an impact to hydraulic unit.
- Use care not to allow dust to enter hydraulic unit.
- Do not place hydraulic unit on its side or upside down. Handling it in inappropriate way will affect its original performance.
Fig 3: Identifying ABS Hydraulic Unit/Control Module Assembly & Flat End Rod
Courtesy of SUZUKI OF AMERICA CORP.
