ABS Hydraulic Unit/Control Module Assembly Components

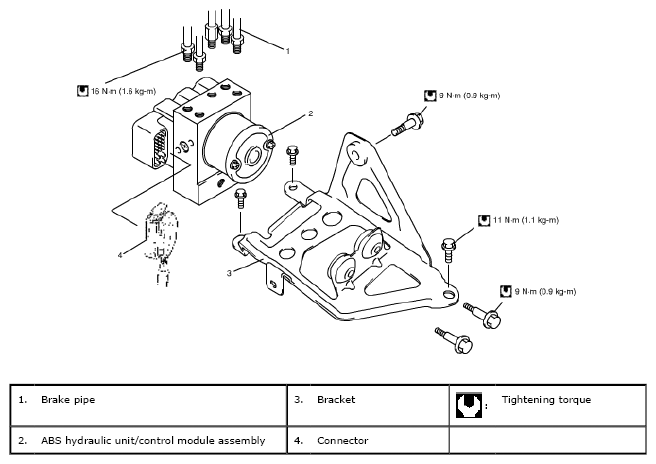

Fig 1: ABS Hydraulic Unit/Control Module Assembly Replacement Components With Torque Specifications
G04722494Courtesy of SUZUKI OF AMERICA CORP.
