Undercoating / Anti-Corrosion Compound Application Area

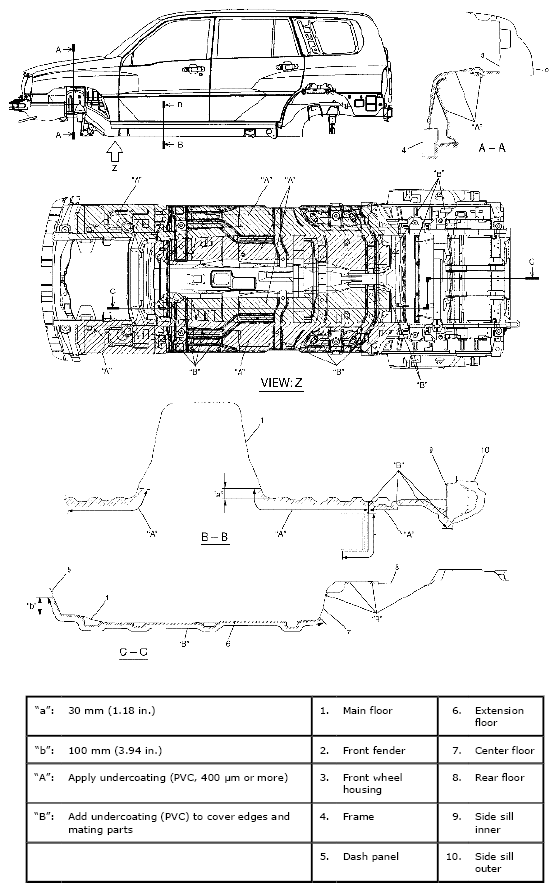

Fig 1: Identifying Undercoating / Anti-Corrosion Compound Application Area (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

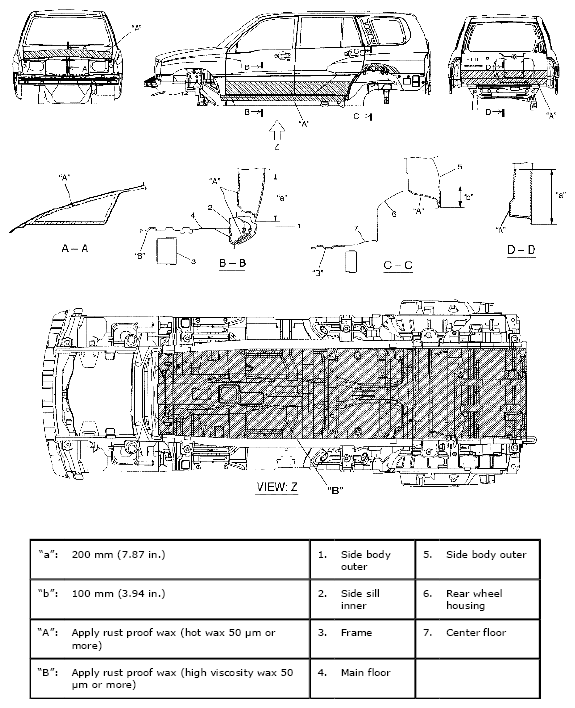

Fig 2: Identifying Undercoating / Anti-Corrosion Compound Application Area (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
