Actuator: Service and Repair

Axle Lock Actuator Motor Removal and Installation
Removal
Reference: Axle Lock Actuator and Motor On-Vehicle Inspection: Front - H27 Engine Model
1. Disconnect negative (-) cable from battery.

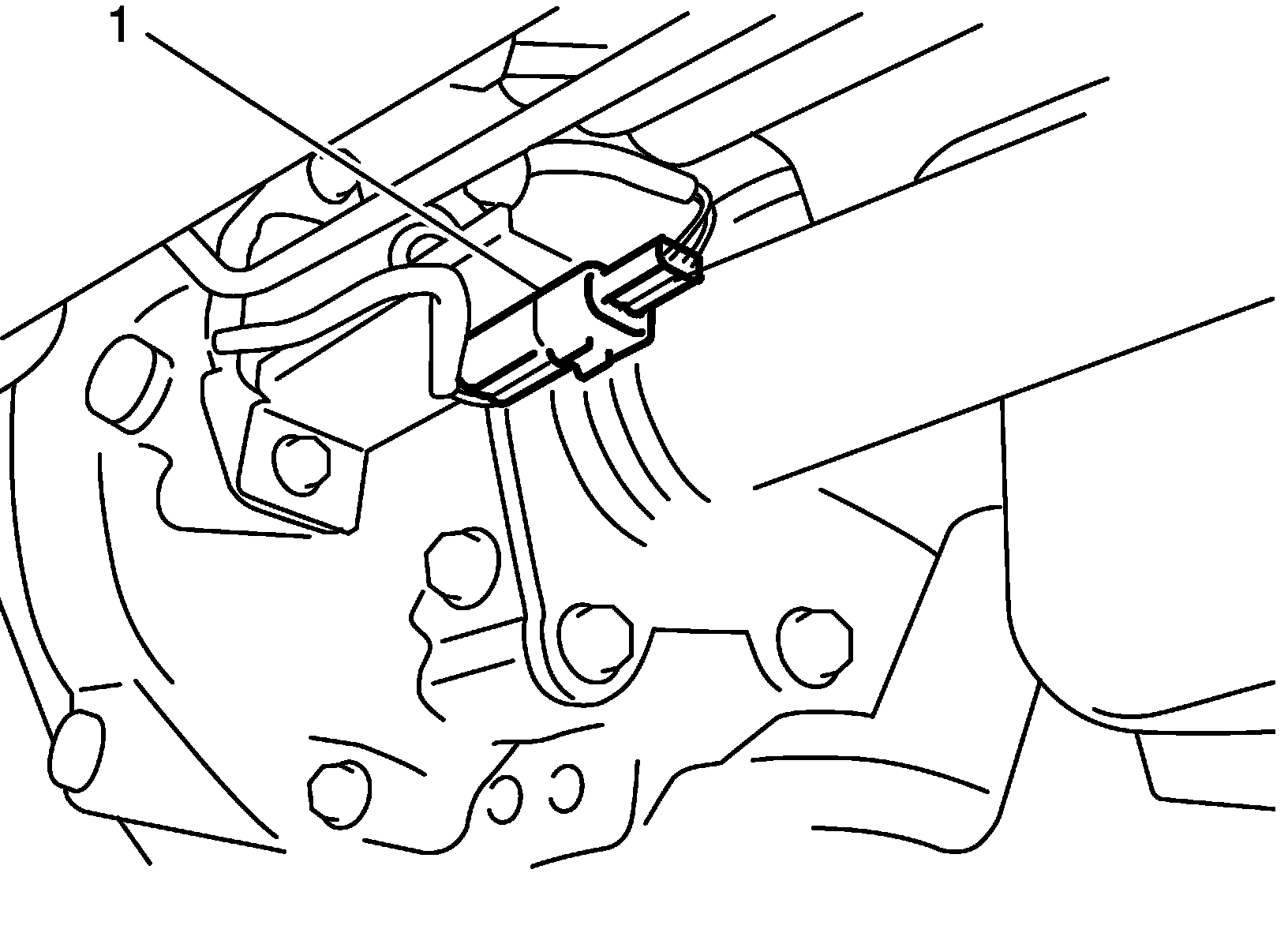

2. Disconnect axle lock actuator connector (1).

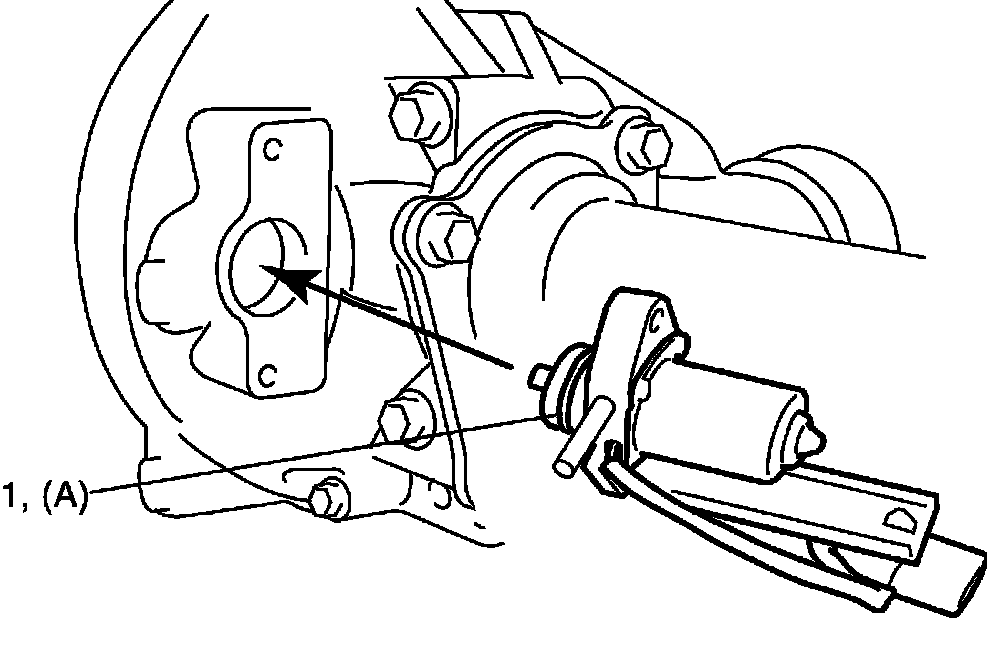

3. Remove axle lock actuator motor (2) from differential carrier cover.

Installation
Reference: Axle Lock Actuator Motor Inspection: Front - H27 Engine Model








1. Install axle lock actuator motor onto differential carrier cover.
"A": Grease 99000-25010

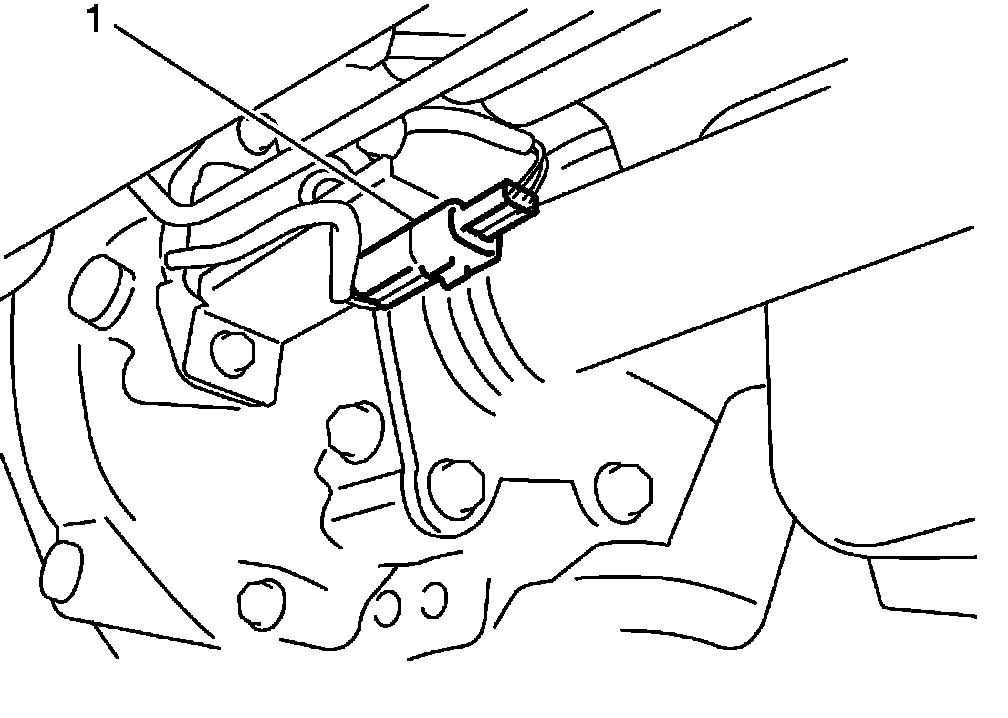

2. Connect axle lock actuator connector (1).
3. Connect negative (-) cable at battery.
