A/T Basic Check

A/T Basic Check
This check is important for troubleshooting when TCM has detected no DTC and no abnormality has been noted in visual inspection. Follow the flow table carefully.

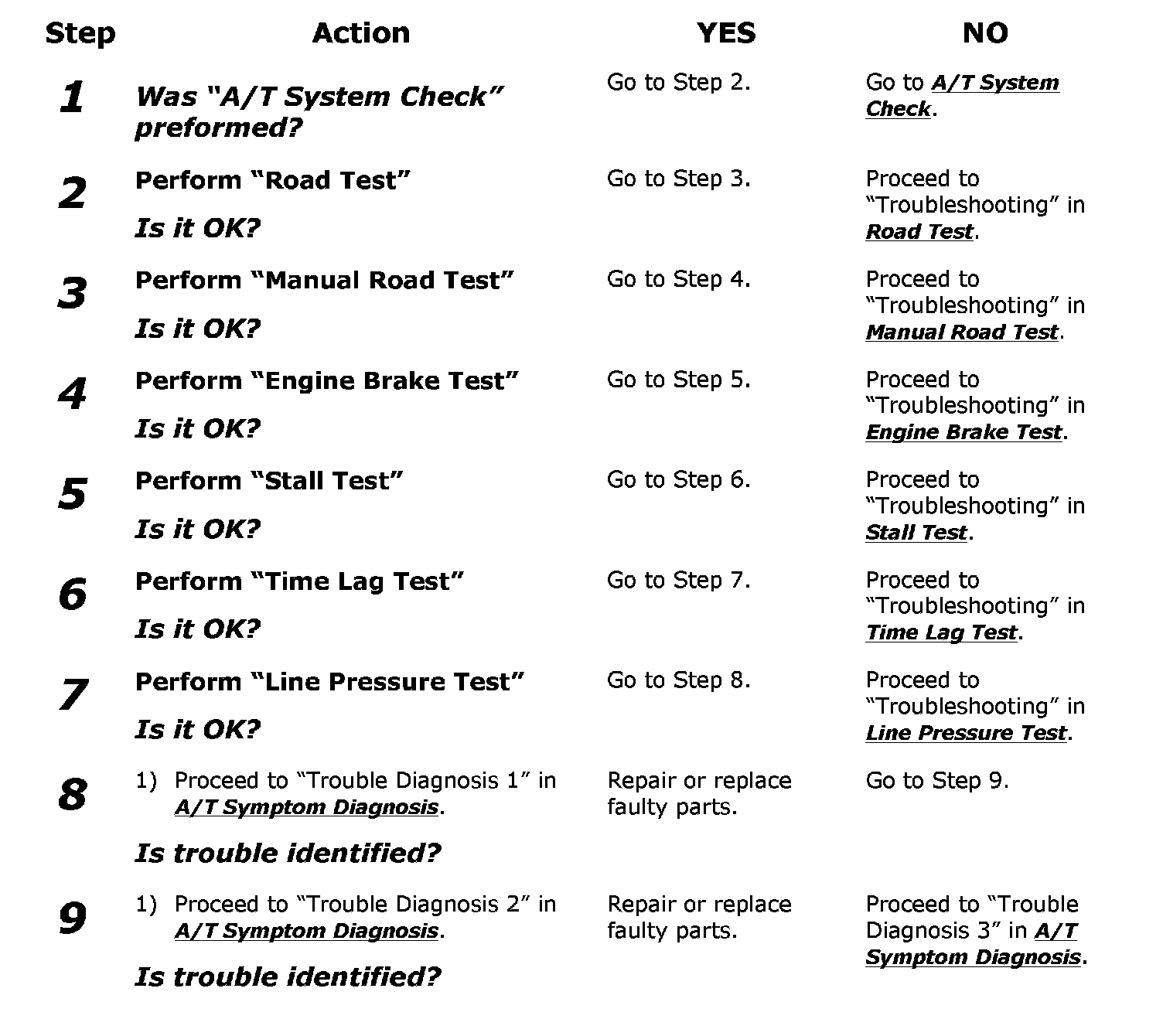

Steps 1-9:
