DTC Is Not Outputted Even With Diag. Switch Terminal

DTC Is Not Outputted even with Diag. Switch Terminal
Connected to Ground

Wiring Diagram








Circuit Description
When diagnosis switch terminal is connected to ground with ignition switch turned ON, the ABS control module outputs DTC by flashing ABS warning lamp.

Troubleshooting

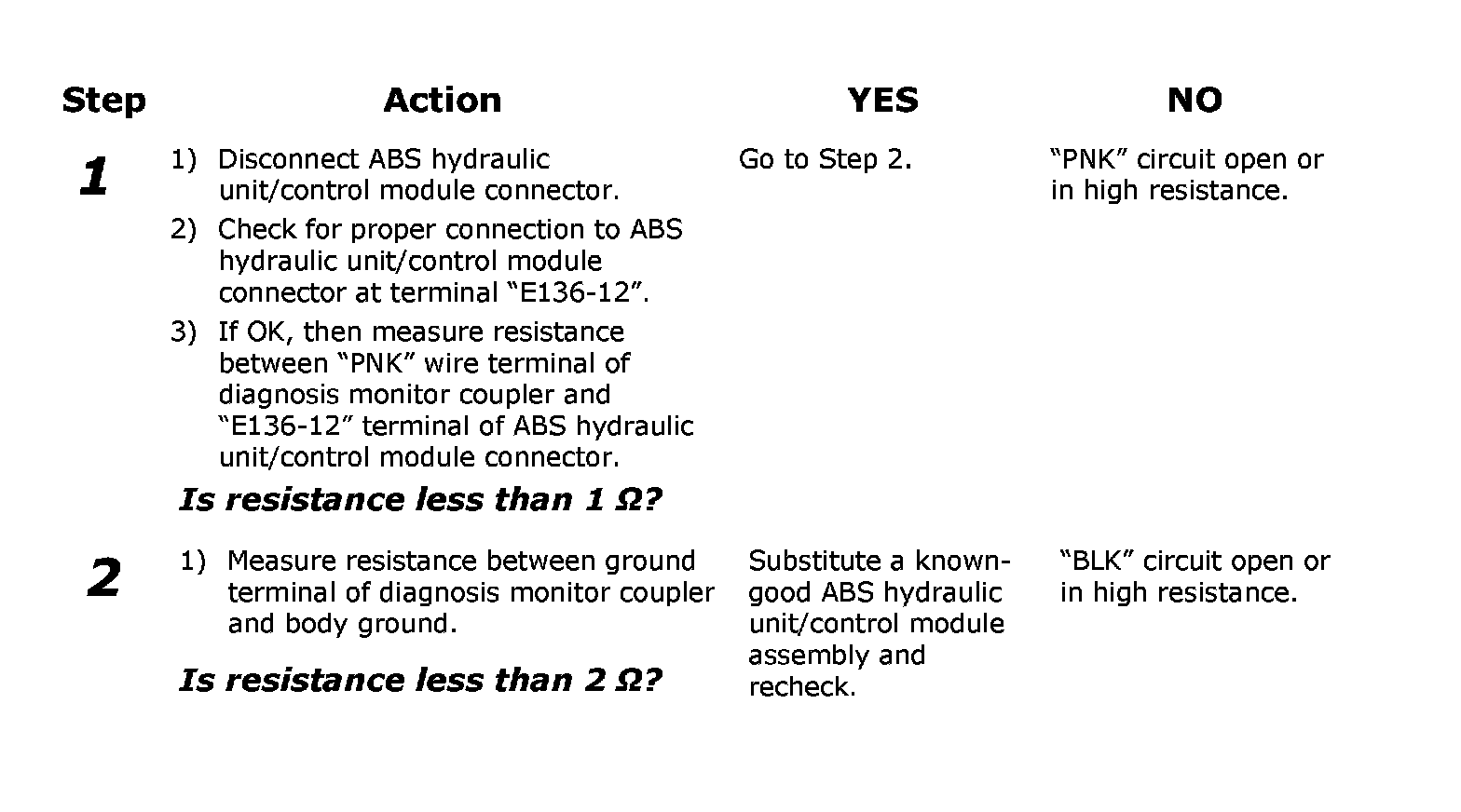

Step 1 - 2:
