Without Scan Tool
DTC ClearanceNot Using SUZUKI Scan Tool
1) Perform the driving test referring to Driving test under ABS Check, if DTC C1015 (DTC 15), C1022 (DTC 22), C1026 (DTC 26), C1032 (DTC 32) or C1036 (DTC 36) is detected. Initial Inspection
2) Turn ignition switch OFF.

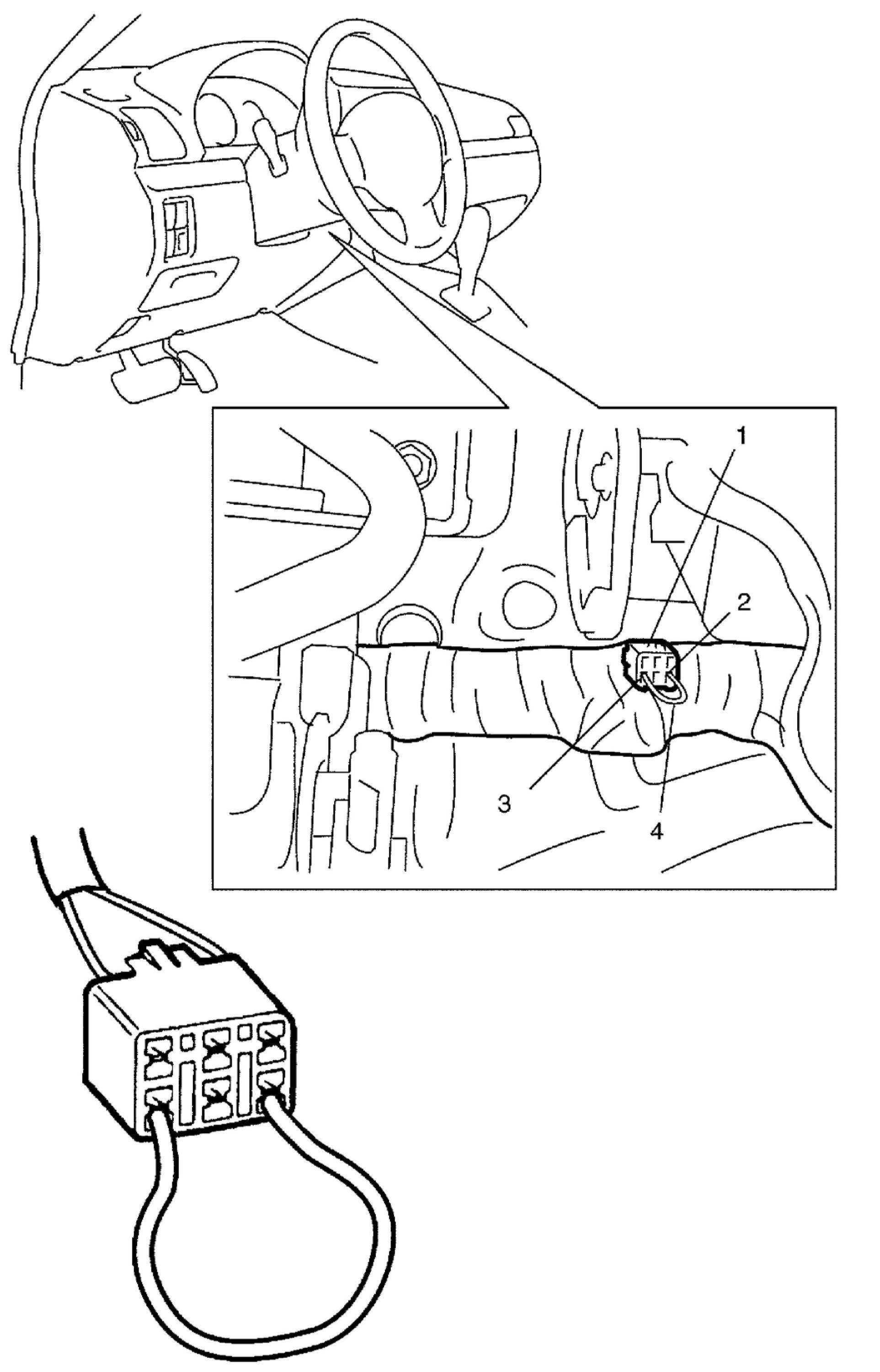

3) Using service wire (4), connect diagnosis switch PNK wire terminal (2) of diagnosis monitor coupler (1) to BLK wire terminal (3).
4) With connection described in Step 3) maintained, turn ignition switch ON.
5) Repeat disconnecting and reconnecting of service wire between diagnosis and ground terminals 5 times or more at about 1 sec. interval within 10 seconds.
NOTE: Service wire ON time must be for 1 second and more.
6) Turn ignition switch to OFF position and disconnect service wire from monitor coupler.
7) Perform the driving test referring to Driving test under ABS Check and DTC Check and confirm that normal DTC (DTC 12) is displayed; not malfunction DTC. Initial Inspection DTC Check
